Emflux One

Complete details of One Motorcycle

Showcased in India in February 2018.

Rate Emflux One:
4.0/5 (14 votes)
Add To Compare
Write a Review
Emflux One Price Rs. 5,00,000 [Ex-showroom, New Delhi]

The given price can change depending on the colour and other features like alloy wheels, disc brakes, accessories etc.

State, City Ex Showroom Price On Road Price
Delhi, New Delhi Rs. 5,00,000 --
Buy new Emflux One

Book a Test Drive through Bikes4Sale and we will try to get you the best offer for Emflux One.

For Exciting Offers, Book a Test Drive
+91-
By submitting, you agree to our Terms & Conditions.
4692
Features
- Parking/Walking Assist
Back and Forth - 3 km/h max controlled speed

- Charger Locator
Location/booking of charging stations through Emflux App/Emflux ONE Dashboard

- Body Panels
Lightweight Glass-fibre panels (Upgradable to Ultralight Carbon Fibre panels)

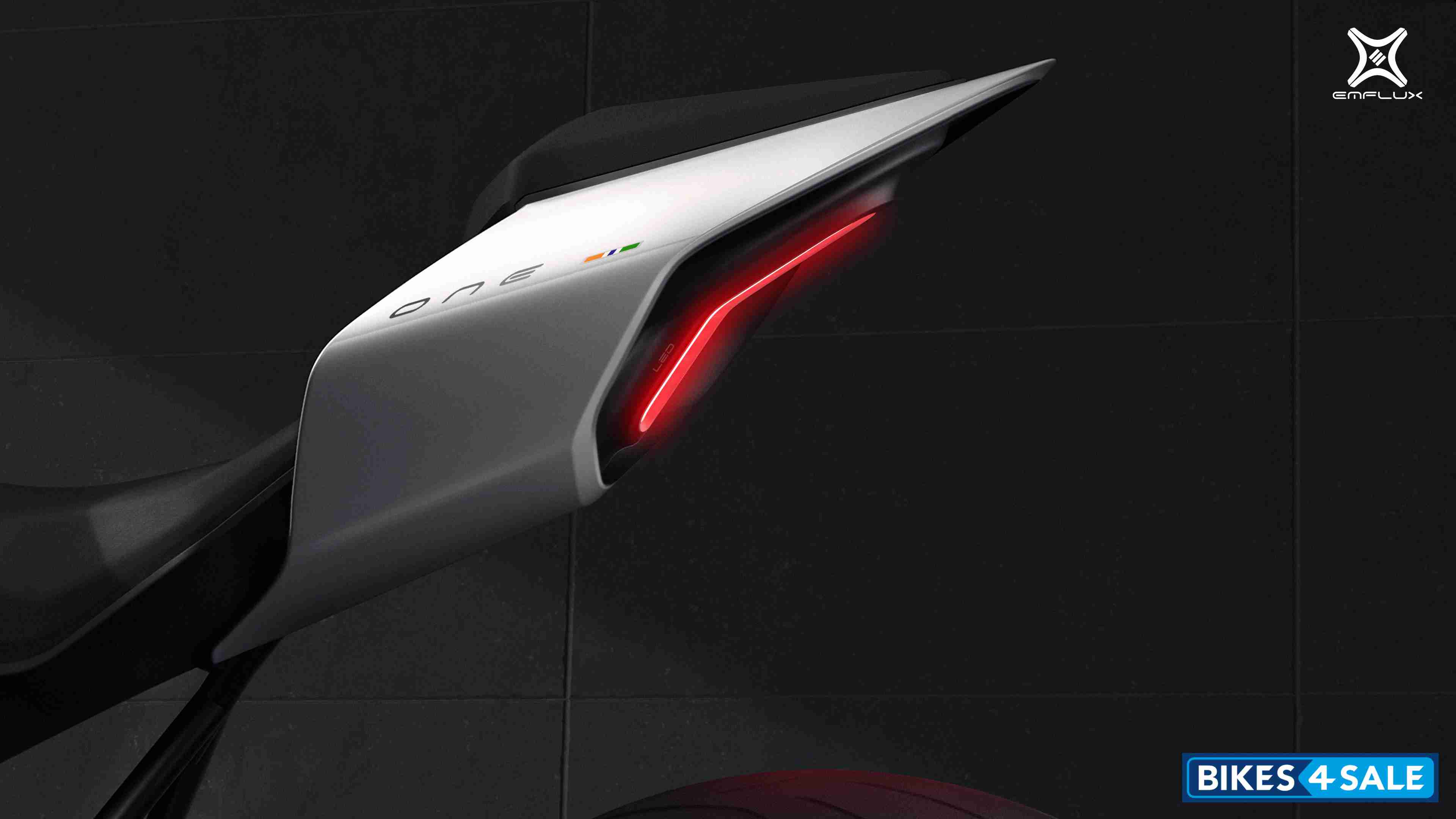

-Lights
Energy efficient full LED lighting
Similar Motorcycles
Emflux One
Emflux One
Emflux One
Emflux One
Emflux One
Emflux One
Emflux One
Emflux One
Emflux One
Emflux One
Technical Specifications
Vehicle TypeMotorcycle
FuelElectric
Cooling SystemLiquid Cooled
Maximum Torque84 Nm @ 8400 rpm
Load Carrying Capacity200 Kg
TransmissionDirect Drive
DrivetrainPrimary Reduction: 58:19
Final Drive: 45T/15T Chain Drive
Acceleration100 Kmh in 3.0 sec
Top Speed200 kmph
Motor Details
Emflux 3 Phase AC Induction with Liquid Cooling
Peak Torque: 84 Nm (Limited to 75Nm from the controller)
Peak Power: 60kW (Limited to 53 kW (71hp) from the controller)
IP Rating: IP 67
Range
City Range: 200 Km
Highway Range: 150 Km @ 80 Kmph
Charging Time
80% in 36 minutes from WARP Charger,
3 Hours from Regular 15A Wall Charger

Recharge
3.5 h (0-100% Soc) Mode 2 or 3 Charge
30 min (0-85% Soc)Mode 4 Dc Fast Charge 1
Display
7" touch TFT Display
Electricals
BatteryEmflux Li-ion, Liquid Cooled Modular Battery Pack with Integrated High Power Samsung Cells
Nominal Capacity: 9.7 KWh
Cooling System: Air cooled
IP Rating :IP 67
ChargerEmflux WARP Charger
Input: 85-264V /15A AC Supply
Output: 84-118V / 33A DC
Power: 3.3KW Nominal
Efficiency: 95% (Min.)
Cooling System: Liquid Cooled
IP Rating : IP 67
ControllerNVIDIA Jetson TK1 (NVIDIA Kepler GPU with 192 CUDA Cores and NVIDIA 4-Plus-1 Quad-Core ARM Cortex- A15 CPU)
Warranty for Battery100000 Km/5 years (More than 80% of the initial capacity)
Brakes
Front BrakeDual 300mm disc with Brembo monoblock 4 piston radially mounted calipers
Rear BrakeSingle 220mm disc with Brembo fixed caliper
ABS SystemDual Channel ABS
Chassis and Suspension
FrameTubular Steel Trellis
Front Suspension43 Upside Down Forks (Upgradable to Öhlins Race and Track USD 43mm forks with Adjustable Preload, Damping and Rebound)
Rear Suspension46 mm Mono Gas Shock (Upgradable to Öhlins with 46mm Monotube Gas Shock with Adjustable Preload, Damping and Rebound)
Tyres
Wheels / RimCast Alloy (Upgradable to Forged Alloy)
Front TyrePirelli Diablo Rosso II 120/70 ZR17
Rear TyrePirelli Diablo Rosso II 180/55 ZR17
Dimensions
Length x Width x Height-- x -- x -- mm
Seat Height810 mm
Wheelbase1395 mm
Kerb Weight169 kg
Additional Details
- CHASSIS
Subframe:Tubular Steel Trellis
Swingarm: Single Sided Tubular Steel Trellis

- DIMENSION
Rake: 23.5 degrees
Steering Angle : 64 Lock to Lock

- BATTERY MANAGEMENT SYSTEM
BMS System: TI™ BMS IC with Hercules™ Microcontroller*
Cell Balancing: Passive Balancing
Protection Features: Over voltage, Under voltage, Over Current, and Extreme Temperature Protection
Extra Features : Advance battery capacity/health monitoring

- MOTOR CONTROLLER (INVERTER)
Nominal Operating Voltage: 100V
Maximum Operating Voltage: 120V
Continuous Current : 220A
Peak Current: 600A
Continuous Power: 20KW
Peak Power: 60KW (Electronically limited to 53KW)
Control Method: Field Oriented Control (FOC)
Cooling System: Liquid Cooled
IP Rating : IP 67

- MASTER CONTROLLER
Processor: NVIDIA Jetson TK1 (NVIDIA Kepler GPU with 192 CUDA Cores and NVIDIA 4-Plus-1™ Quad-Core* ARM® Cortex™- A15 CPU)
Display: 6.8-inch Touchscreen - Smart Display
Cameras: Dual front and single rear
Navigation: GPS Navigation - User friendly integrated UI
Wired Connectivity: CAN communication with all the vehicle controllers
Wireless Connectivity: Bluetooth, WiFi, 4G System Software - Emflux™ Learning OS V1.0 (Will receive over-the-air updates to add new features and improve existing functionality)
System UI: Emflux NEXT UI with modular layout, integrated navigation, communication, connectivity, real time system status updates, speedometer, odo, tripmeter, and all telltale signals - upgradeable over-the-air to allow for newer features.
IP Rating: IP 67
Vehicle Warranty
Km/5 years (Except for normal wear and tear)
