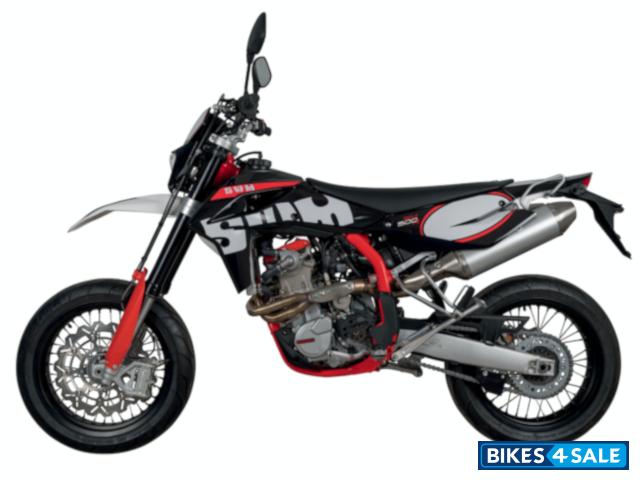

SWM SM 500 R

Complete details of SM 500 R Motorcycle


SWM SM 500 R is not yet available in India.

Rate SWM SM 500 R:
4.0/5 (1 vote)
Add To Compare
Write a Review
SWM SM 500 R Price

Not Available

Technical Specifications
Vehicle TypeMotorcycle
FuelPetrol
Engine Displacement501.00 cc
Engine DetailsSingle cylinder, four stroke, DOHC, 4 valve
Engine StartingElectric (with automatic decompressor)
Bore x Stroke97mm x 67.8mm
Compression Ratio12.9:1
Engine LubricationDry sump with two oil pump rotor and cartridge filter
ClutchWet, multiplate type; hydraulic control
Fuel Systemelectronic injection feed
IgnitionElectronic, inductive discharge, with adjustable advance (digital control)
Cooling SystemLiquid Cooled
TransmissionConstant mesh gear type,6 speed
Gear Shift Pattern1- N-2-3-4-5-6
Electricals
Battery12 V-6Ah
Head LampLED
Tail LampLED
Brakes
Front Brakefloating disc type with radial caliper
Rear Brakefloating disc type with hydraulic control and floating caliper
Chassis and Suspension
FrameHigh strenght steel single beam double cradle main frame; rear frame in light alloy
Front SuspensionUpside Down Telescopic Hydraulic Fork With Advanced Axke, Rebound Dumping Adjustment
Rear SuspensionSingle Hydraulic Shock Absorber, Spring Preload, Compression And Rebound Adjustments
Tyres
Wheels / RimAlloy
Front Tyre120/70-17
Rear Tyre150/60-17"
Dimensions
Length x Width x Height2110 x 820 x 1250 mm
Wheelbase1480 mm
Weight133 kg
Ground Clearance295 mm
Petrol Tank Capacity7.2 litres
