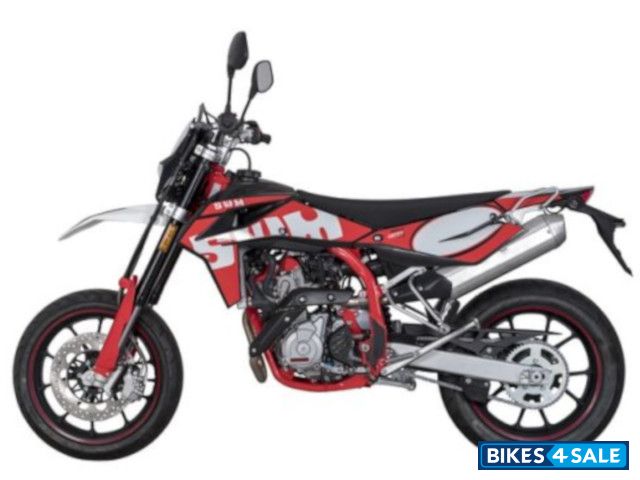

SWM SM 125 R

Complete details of SM 125 R Motorcycle


SWM SM 125 R is not yet available in India.

Rate SWM SM 125 R:
4.5/5 (2 votes)
Add To Compare
Write a Review
SWM SM 125 R Price

Not Available

Technical Specifications
TypeMotorcycle
Engine Displacement124.70 cc
Engine TypeDOHC, 4 valve
Engine StartingElectric
Bore x Stroke58mm x 47.2mm
Compression Ratio12.8:1
Engine LubricationDry sump with oil pump rotor and cartridge filter
ClutchWet, multiplate type; mecanical control
Fuel SystemElectronic Fuel Injection
IgnitionElectronic, inductive discharge, with adjustable advance (digital control)
Cooling SystemLiquid Cooled
TransmissionConstant mesh gear type,6 speed
Gear Shift Pattern1- N-2-3-4-5-6
Electricals
Battery12 V-6Ah
Head Lamp35 / 35 W
Tail LampLED
Brakes
Front BrakeFixed disc, with hydraulic control and floating caliper with CBS
Rear BrakeFixed disc, with hydraulic control and floating caliper with CBS
Chassis and Suspension
FrameHigh strenght steel single beam double cradle main frame; steel rear frame
Front SuspensionUpside-Down telescopic hydraulic fork with forward axle ,rebound dumping adjustment
Rear SuspensionProgressive high performance "Soft Damp" single hydraulic shock absorber
Tyres
Wheel TypeAlloy
Front Tyre110/70 - 17
Rear Tyre140/70 - 17
Dimensions
Length x Width x Height2106 x 820 x 1165 mm
Wheelbase1500 mm
Weight110 kg
Ground Clearance275 mm
Petrol Tank Capacity7.2 litres
