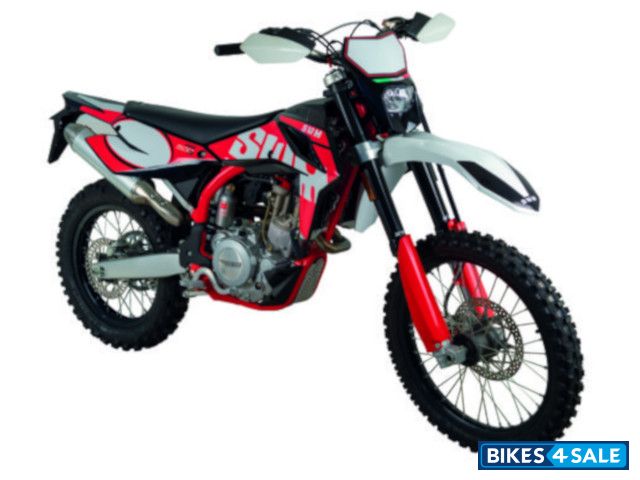

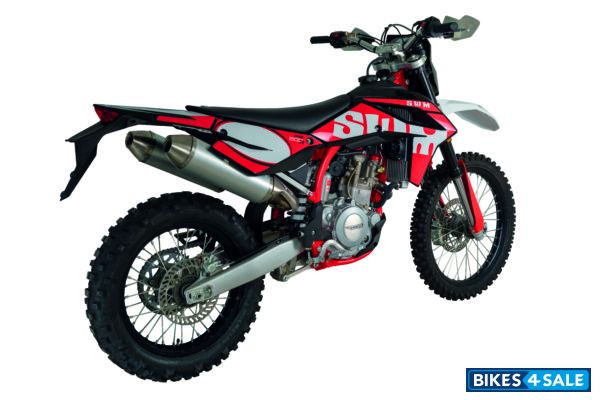

SWM RS 500 R

Complete details of RS 500 R Motorcycle


SWM RS 500 R is not yet available in India.

Rate SWM RS 500 R:
3.0/5 (2 votes)
Add To Compare
Write a Review
SWM RS 500 R Price

Not Available

Similar Motorcycles
Technical Specifications
TypeMotorcycle
Engine Displacement501.00 cc
Engine TypeSingle cylinder, 4-stroke
Engine StartingElectric With Decompressor
Bore x Stroke97mm x 65.5mm
Compression Ratio12.9:1
Engine LubricationWet sump with 2 lobe oil pumps, cartridge filter and radiator oil
ClutchWet multiplate type with hydraulic control
Fuel SystemElectronic Fuel Injection
IgnitionElectronic , With Adjustable Advance And Digital Control
Cooling SystemLiquid Cooled
Electricals
Battery12V – 6,3 Ah
Brakes
Front BrakeFixed Disc With Hydraulic Control And Floating Caliper
Rear BrakeFixed Disc With Hydraulic Control And Floating Caliper
Chassis and Suspension
FrameHigh Strength Steel With Round Pipes, Single Beam Double Cradle Main Frame, Rear Frame In Light Alloy
Front SuspensionUpside Down Telescopic Hydraulic Fork With Advanced Axke, Rebound Dumping Adjustment
Rear SuspensionSingle Hydraulic Shock Absorber, Spring Preload, Compression And Rebound Adjustments
Tyres
Wheel Typespoke wheels
Front Tyre90 / 90 x 21 ”
Rear Tyre140 / 80 x 18 ”
Dimensions
Length x Width x Height2240 x 820 x 1285 mm
Wheelbase1485 mm
Weight116 kg
Ground Clearance300 mm
Petrol Tank Capacity7.5 litres
