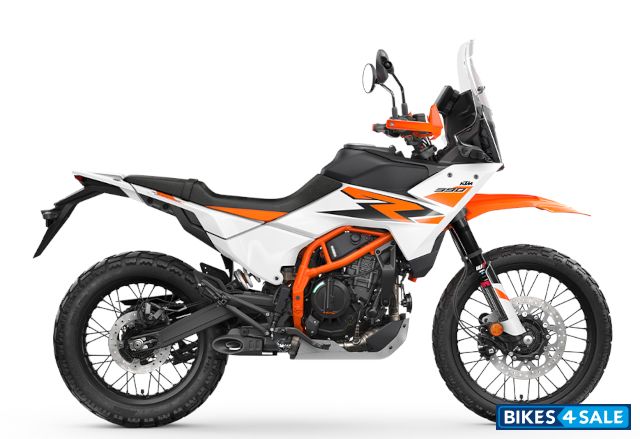

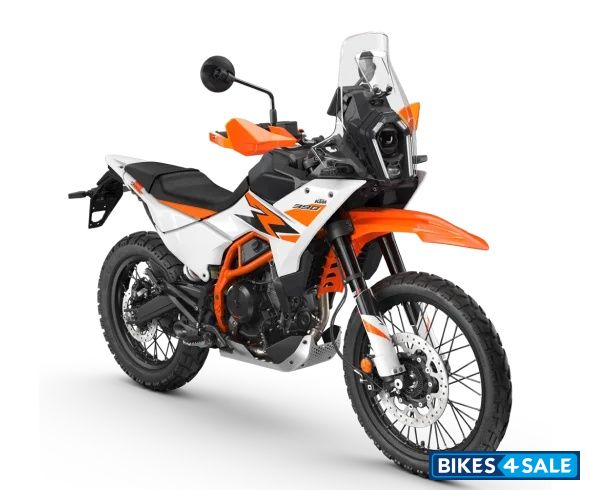

The KTM 390 Adventure R sports a 398.70 cc 4-stroke single-cylinder DOHC internal combustion engine with a sharp, eager character. Throttle response feels crisp across the rev range, supporting confident highway cruising and controlled trail progress. Long-distance intent and rally-inspired ergonomics define the experience, keeping the character focused and purposeful.
4 stroke, Single Cylinder, DOHC, Internal Combustion Engine
Bore x Stroke
89mm x 64mm
Clutch
Slipper clutch
Maximum Power
46 PS @ 8500 rpm
Maximum Torque
39 Nm @ 8500 rpm
Riding Modes
Normal, Off-road
Display
5" TFT Display
Electricals
Head Lamp
LED
Brakes
Front Brake
320mm Disc
Rear Brake
240mm Disc
ABS System
Cornering & Switchable ABS
Chassis and Suspension
Front Suspension
Adjustable, WP Apex Open Cartridge Fork with 43mm dia, 230 mm travel
Rear Suspension
Adjustable, WP Apex Shock Absorber, 230 mm travel
Tyres
Wheels / Rim
21-inch front wheel
18-inch rear wheel
Rally Style spoke wheels
Front Tyre
90/90-21 M/C 54H
Rear Tyre
140/80B18 M/C 70T
Dimensions
Seat Height
880 mm
Wheelbase
1479+/-10 mm
Kerb Weight
183 kg
Ground Clearance
272 mm
Fuel Tank Capacity
14.5 litres
