Trek Checkpoint ALR 4 Bicycle price, colours, pictures, specs and reviews

Price, Colours and Features of Checkpoint ALR 4

The Trek Checkpoint ALR 4 bicycle, with its SRAM PC-1130 11-speed chain and 14g stainless steel black spokes, exemplifies precision engineering. These details contribute to a seamless cycling experience, offering riders smooth gear shifts and resilient construction. Crafted for endurance and reliability, this bike is a testament to Trek's commitment to excellence in design and functionality.

Rate Trek Checkpoint ALR 4:

4.0/5 (2 votes)

Write a Review

Trek Checkpoint ALR 4 Price

Rs. 1,61,599

Picture Gallery

Matte Deep Dark Blue

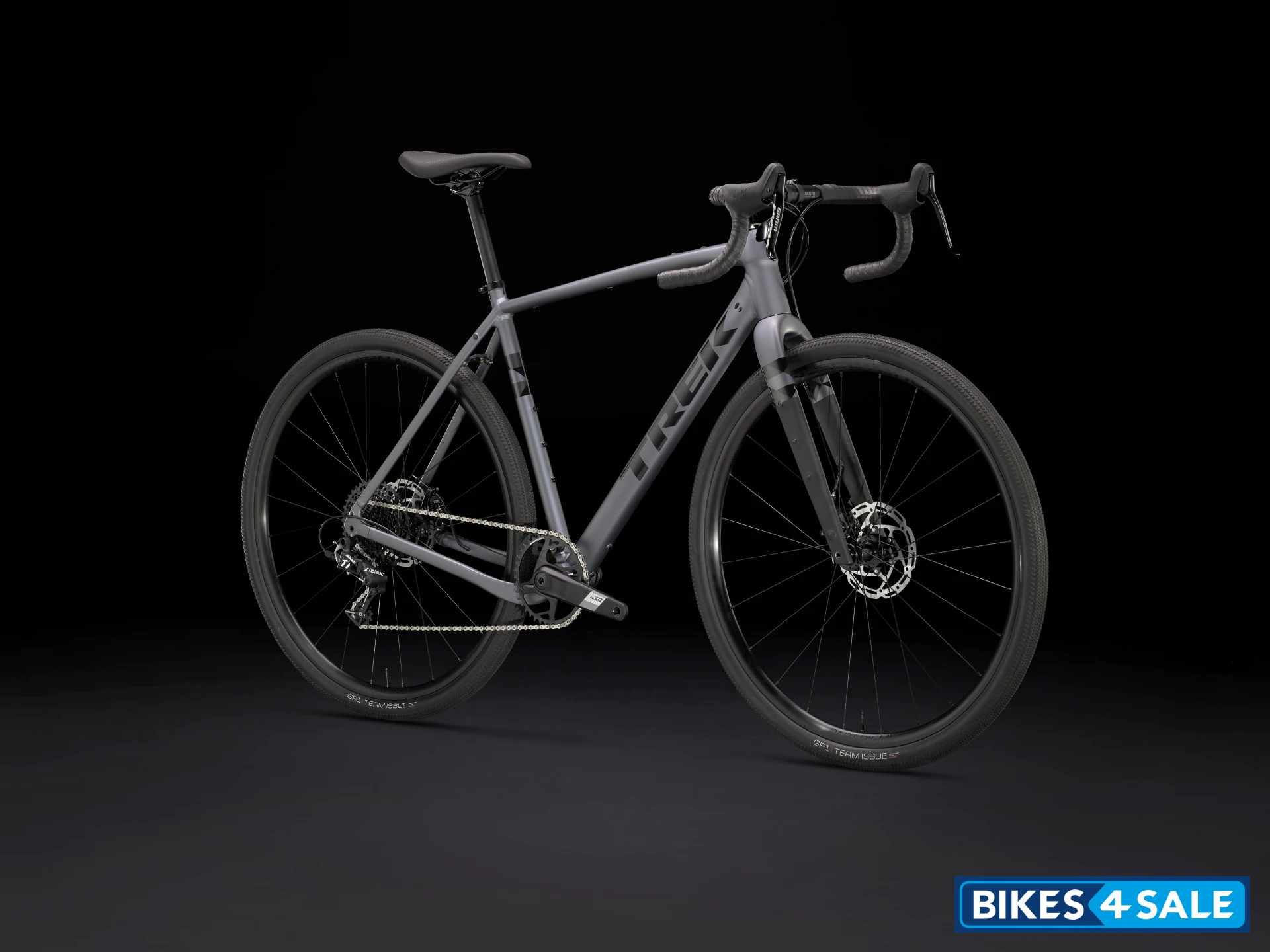

Matte Galactic Grey

Satin Power Surge

Similar Bicycles

Cockatoo CBC-05

Veloce Urban 1

Vaux Battle 516

Upgrade Monster 6.4

Scolarian Mudfest 1x10(QR)

Schnell Zoom 21

Colours

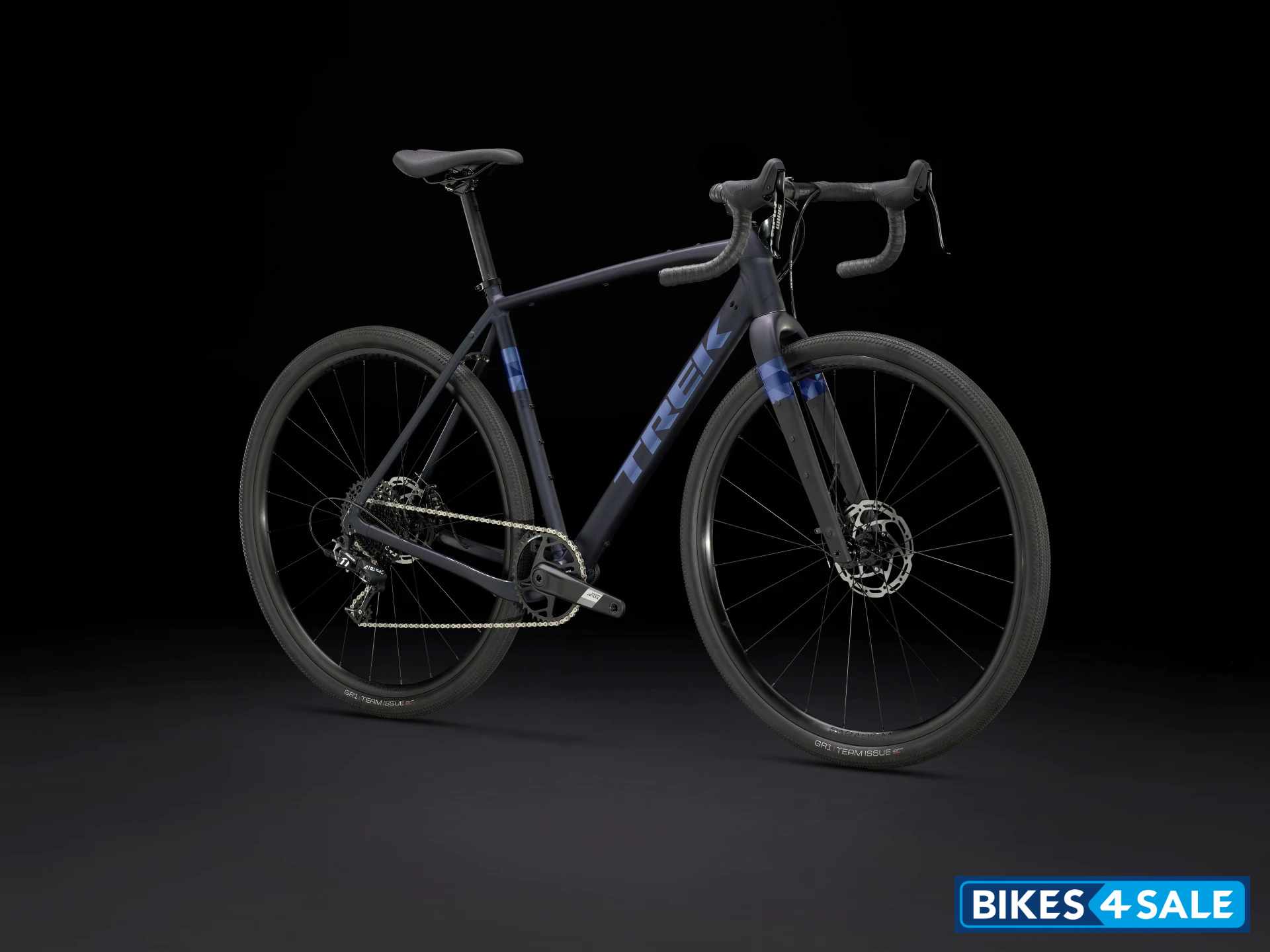

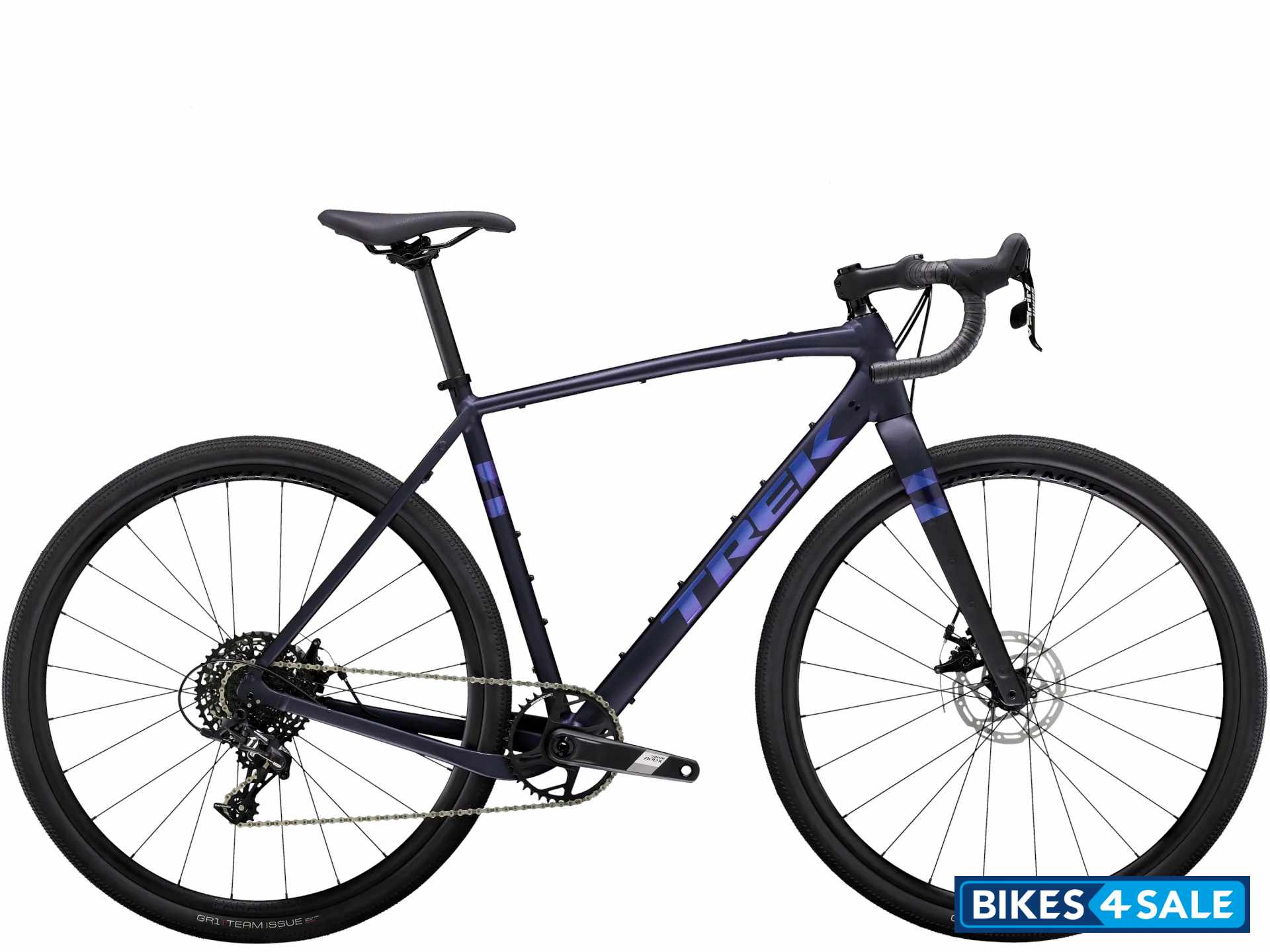

Matte Deep Dark Blue

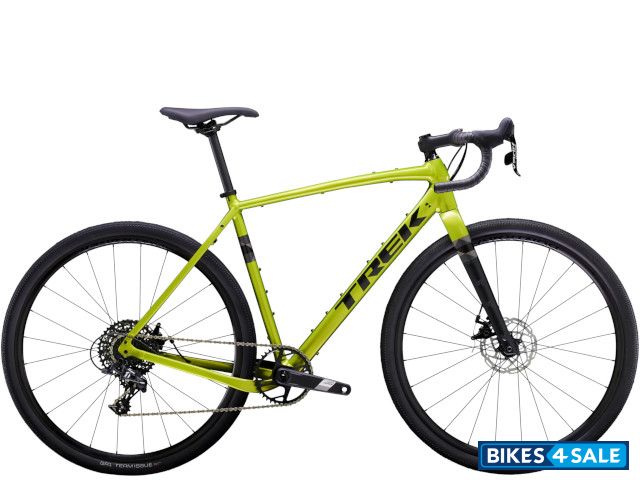

Satin Power Surge

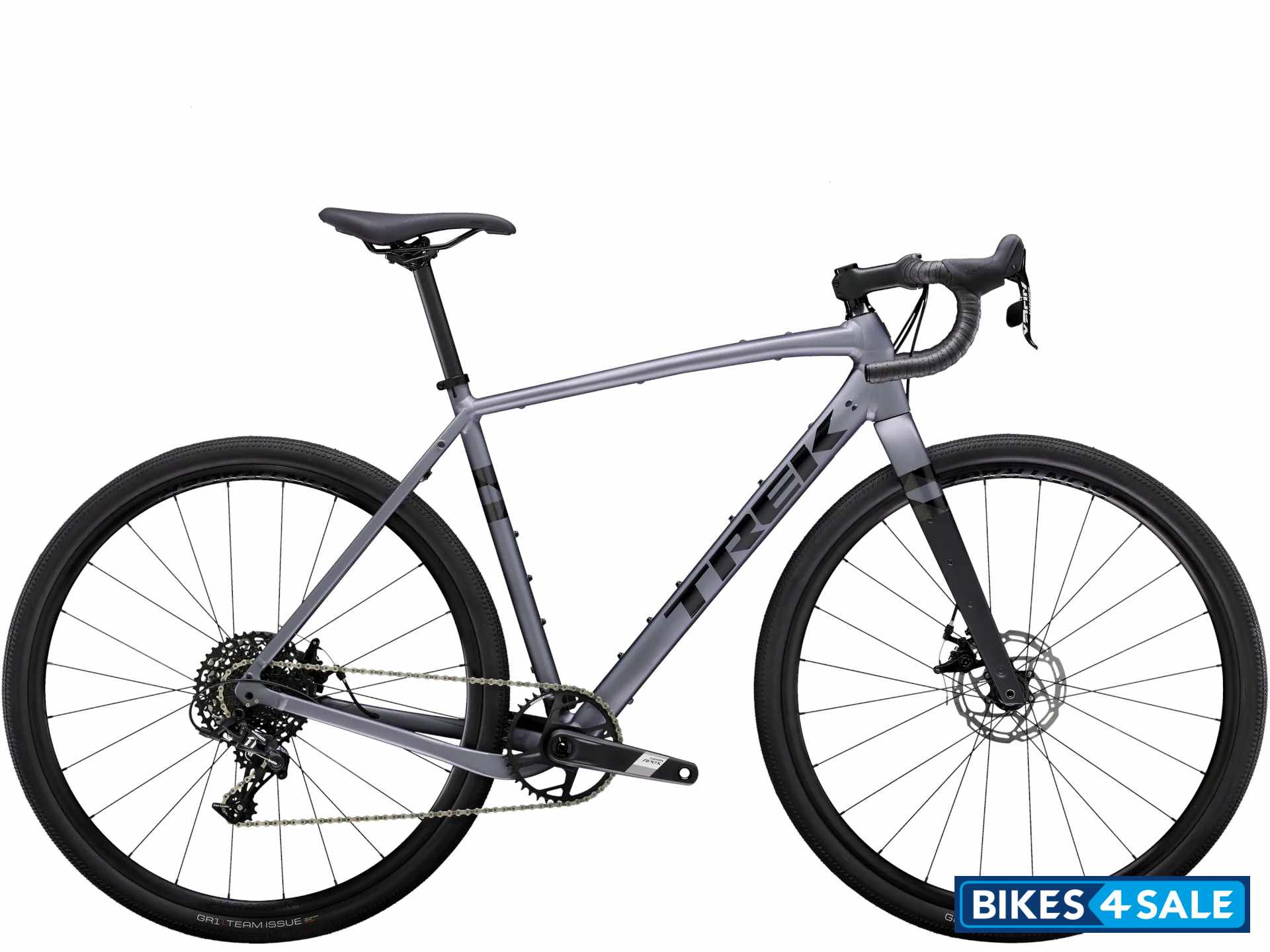

Matte Galactic Grey

Technical Specifications

Vehicle Type	Bicycle
Stem	Size: 49 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length Size: 52, 54 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length Size: 56, 58 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length

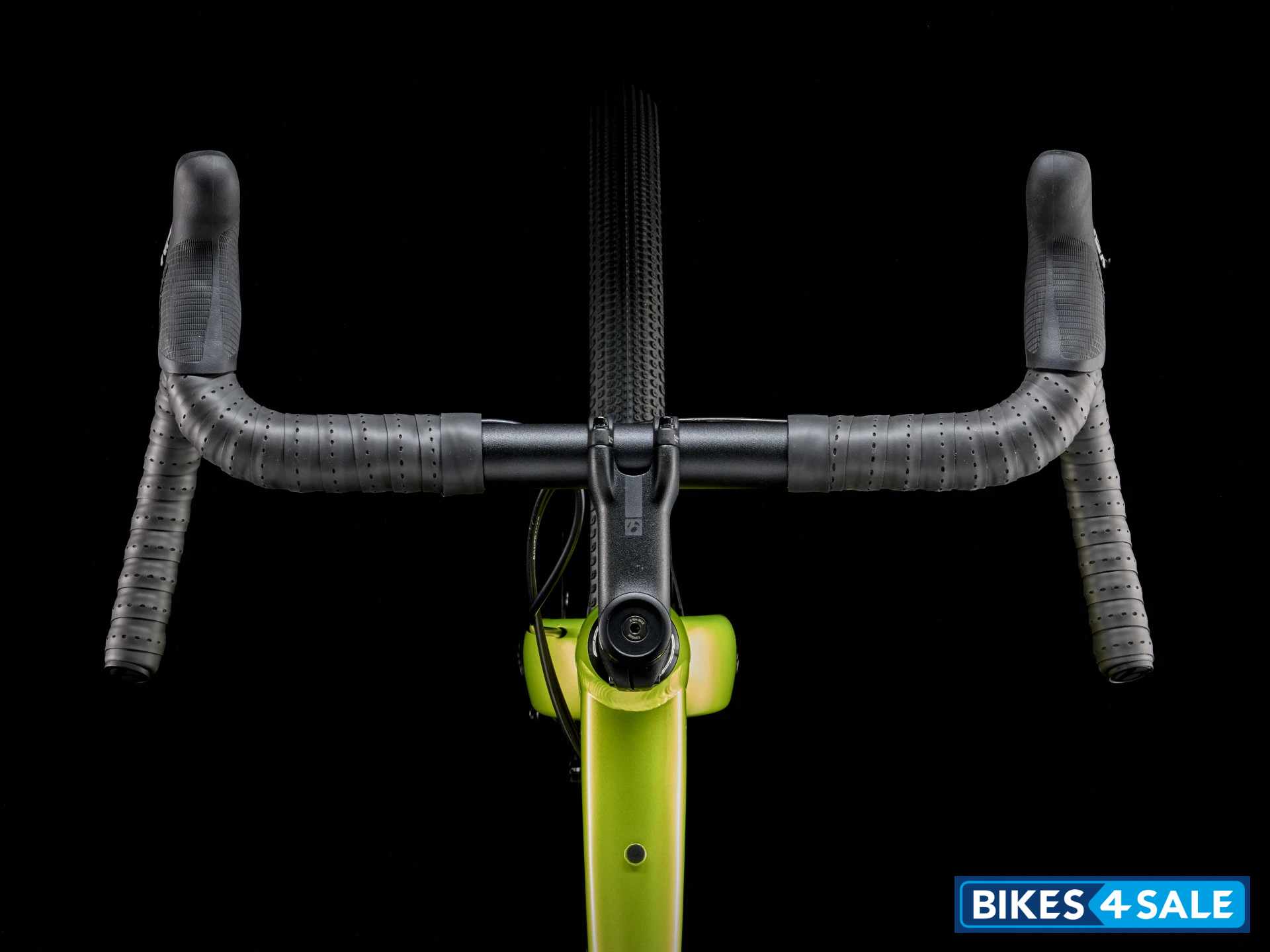

Handlebar	Size: 49 Bontrager Elite Gravel, 38cm Width Size: 52 Bontrager Elite Gravel, 40 cm width Size: 54, 56 Bontrager Elite Gravel, 42 cm width Size: 58 Bontrager Elite Gravel, 44 cm width
Fork	Checkpoint Carbon, Tapered Carbon Steerer, Rack Mounts, Mudguard Mounts, Flat-mount Disc, 12x100mm Thru Axle
Seatpost	Bontrager Alloy, 27.2mm, 12mm offset, 330mm Length
Crankset	Size: 49 SRAM Apex 1, 40T, DUB Wide, 165 mm length Size: 52 SRAM Apex 1, 40T, DUB Wide, 170 mm length Size: 54, 56 SRAM Apex 1, 40T, DUB Wide, 172.5 mm length Size: 58 SRAM Apex 1, 40T, DUB Wide, 175 mm length
Chain	SRAM PC-1130, 11-speed
Shifters	SRAM Apex, 11-speed
Saddle	Size: 49, 52 Bontrager Verse Comp, Steel Rails, 155mm Width Size: 54, 56, 58 Bontrager Verse Comp, Steel Rails, 145mm Width
Derailleur : Rear	SRAM Apex 1, long cage, 42T Max Cog
Hub : Front	Size: 49, 52, 54, 56 Bontrager Alloy, Sealed Bearing, Centerlock Disc, 100x12mm Thru Axle Size: 52, 54, 56, 58 Bontrager alloy, sealed bearing, CentreLock disc, 100x12 mm thru axle
Hub : Rear	Bontrager Alloy, Sealed Bearing, Centerlock Disc, Shimano 11-speed Freehub, 142x12mm Thru Axle
Spoke	14g stainless steel, black
Cassette	SRAM PG-1130, 11-42, 11-speed
Chainrings	Max. chainring size - 1x: 44T (SRAM), 50T (Shimano), 2x: 50/34
Bottom Bracket	SRAM DUB, T47 threaded, internal bearing

Brakes

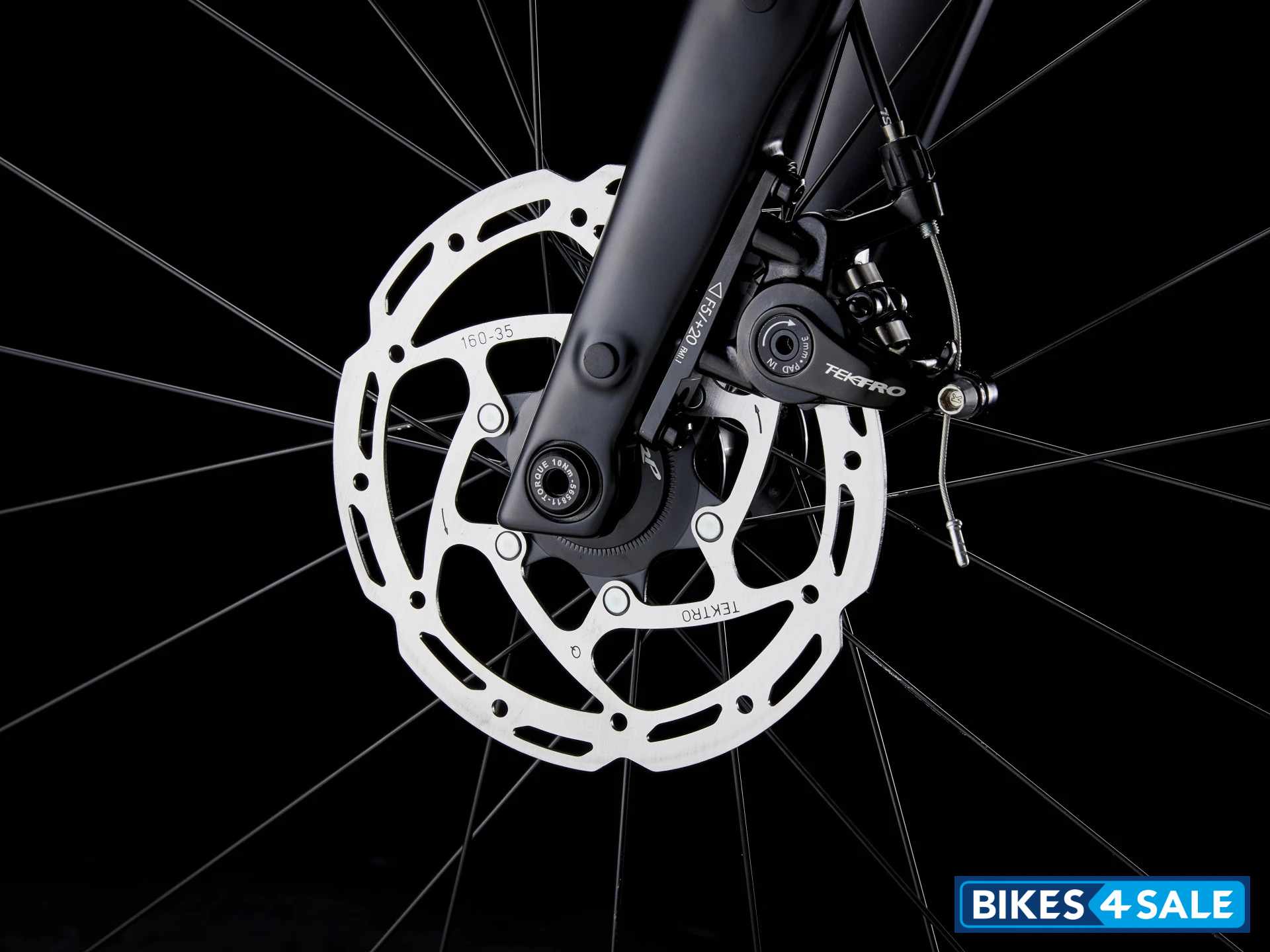

Front Brake	Tektro C550 Mechanical Disc Brake, Dual Piston, Flat Mount
Rear Brake	Tektro C550 Mechanical Disc Brake, Dual Piston, Flat Mount

Chassis and Suspension

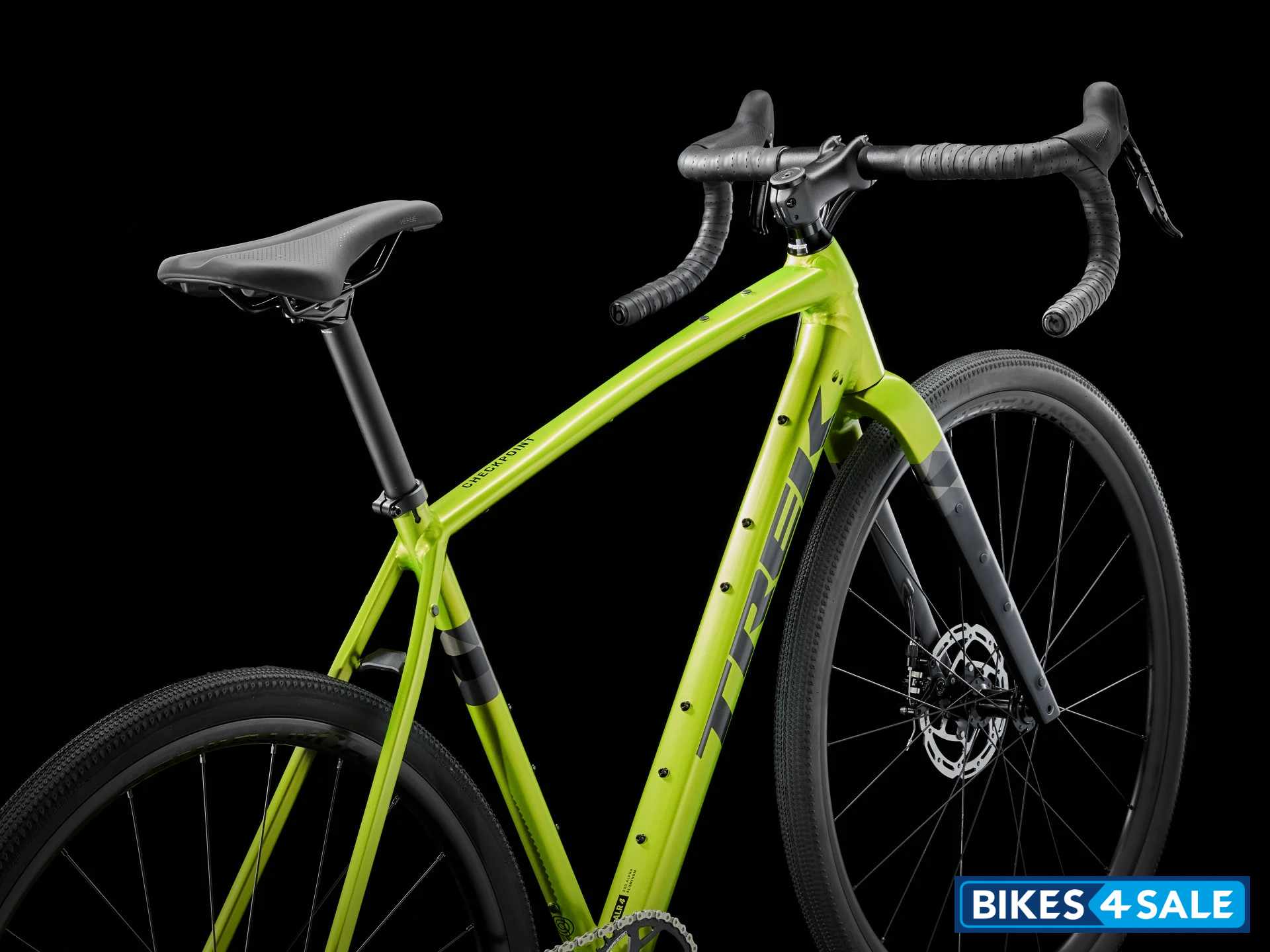

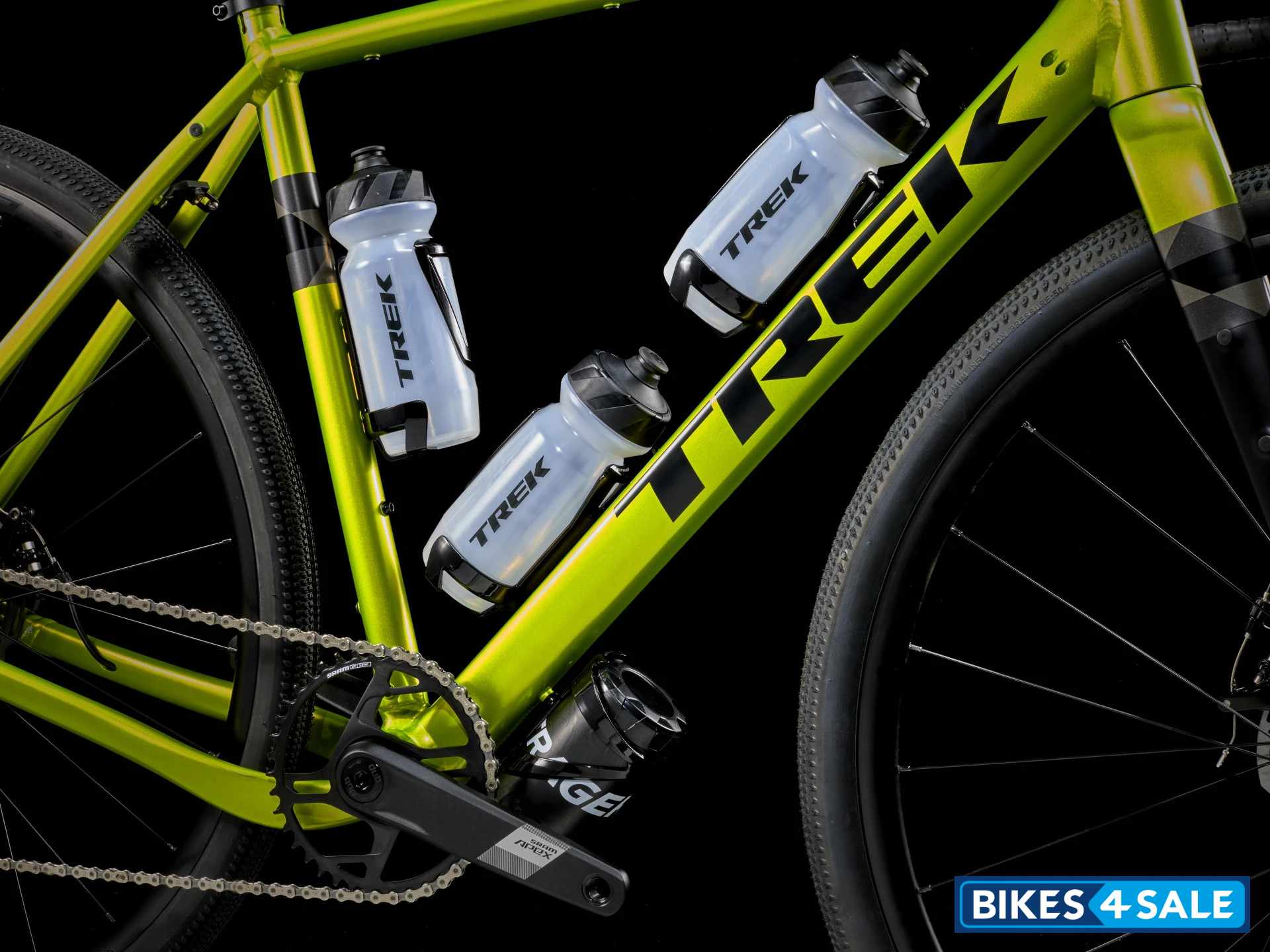

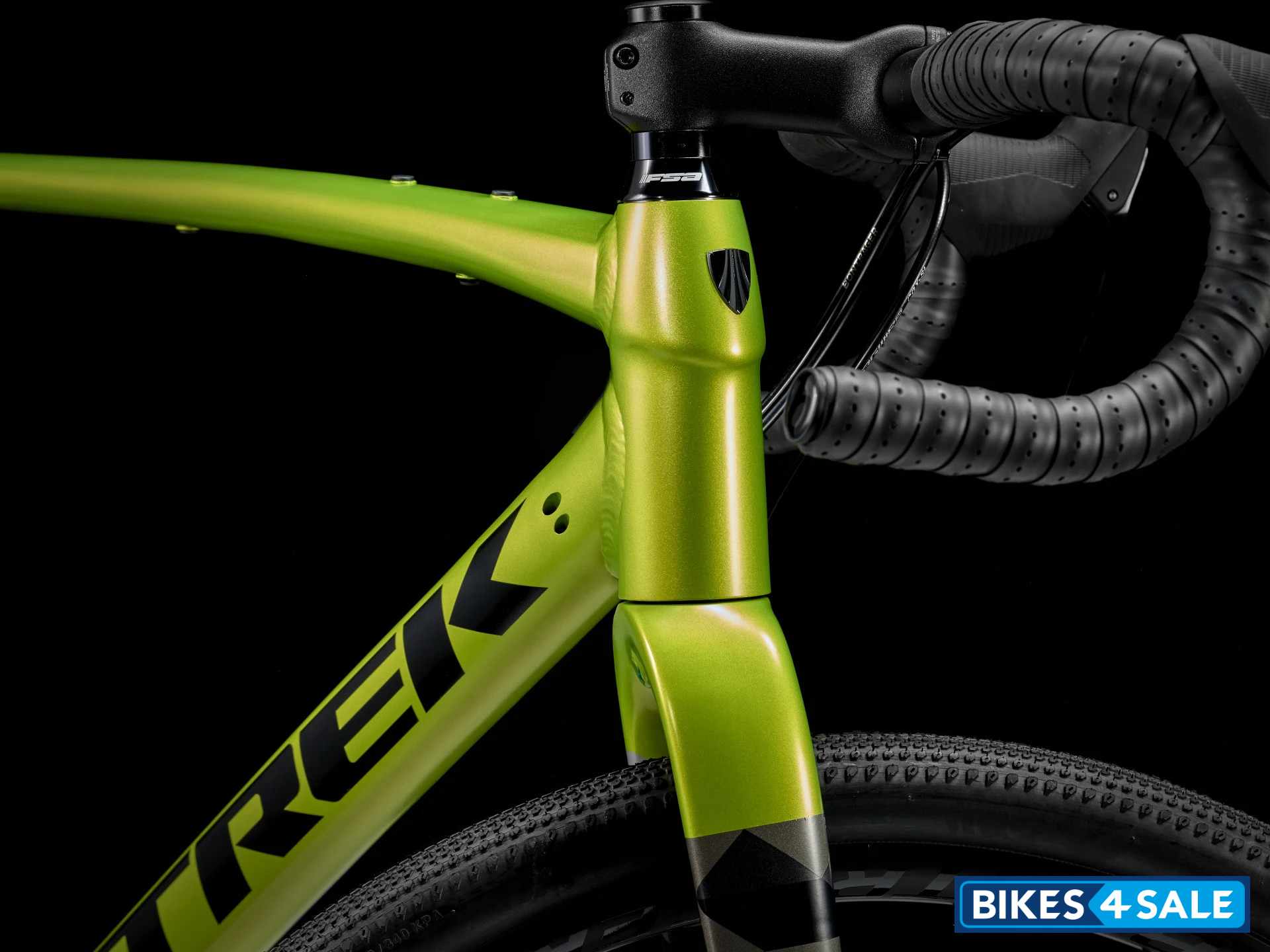

Frame	300 Series Alpha Aluminium, Tapered head tube, Internal cable routing, 3S chain keeper, T47 BB, rack and mudguard mounts, integrated frame bag mounts, flat-mount disc, 142x12mm thru-axle

Tyres
Wheels / Rim	Rim - Bontrager Paradigm, Tubeless Ready, 24-hole, 21 mm width, Presta Valve
Front Tyre	Bontrager GR1 Team Issue, Tubeless Ready, Inner Strength Casing, Aramid Bead, 120 tpi, 700x40 mm
Rear Tyre	Bontrager GR1 Team Issue, Tubeless Ready, Inner Strength Casing, Aramid Bead, 120 tpi, 700x40 mm

Additional Details
Skewer front - Bontrager Switch thru axle, removable lever Skewer rear - Bontrager Switch thru-axle, removable lever Brake rotor - Tektro, Centerlock, 160 mm
