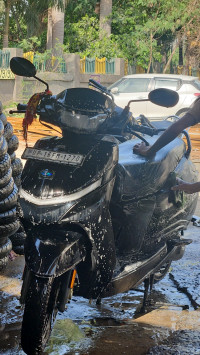

TVS Jupiter ZX

Bikes ›› TVS ›› Jupiter ›› Jupiter ZX

Complete details of Jupiter ZX Scooter

Showcased in India in February 2016. Launched in India in 2016.

Jupiter ZX is an offering from the Indian two wheeler manufacturer TVS, and this scooter is powered by a 109.70 cc 4 Stroke, Single cylinder, Air Cooled, OHC engine. This small capacity engine produces 7.8 bhp @ 7500 rpm and 8Nm torque @ 5500 rpm. The Jupiter holds a high Rigidity Underbone Type frame and the suspension works are done with Advance Telescopic Suspension on the front and Gas Charged Mono Shock at the rear.

TVS has provided Alloy Wheels on this scooter along with tubeless tyres that comes as stock on the front and rear. The fuel tank capacity of this scooter is 5.50 litres and drum brakes are provided for braking.

Rate TVS Jupiter ZX:
3.7/5 (26 votes)
Add To Compare
Write a Review
Price
Rs. 52,489 [ Ex-showroom, New Delhi ]

Onroad and ex-showroom price of TVS Jupiter ZX in all cities.
Buy new TVS Jupiter ZX
Locate TVS dealer in your city.
Colours
TVS Jupiter ZX is available in following colours - Matte Blue, Stallion Brown
Special Features
Dura Cool Seat
Premium Beige Panels
3-D Embossed Metal Logo
Overall Mileage 45 km per litre


Technical Specifications
Type Scooter
Engine Displacement 109.70 cc
Engine Type 4 Stroke,Single cylinder, Air Cooled,OHC
Engine Starting Electric and Kick
Bore x Stroke 50mm x 56mm
Clutch Automatic Clutch
Fuel System Carburettor
Ignition Digital IDI with Ignition Map Technology
Cooling System Air Cooled
Maximum Power 5.88 KW @ 7500 rpm
Maximum Torque 8Nm @ 5500 rpm
Transmission Primary CVT & Secondary Gear Box
Top Speed 85 kmph
Electricals
Battery Battery 12V, 5 Ah Flooded
Head Lamp 12V, 35/35W Halogen(Multi-reflector Type)
Tail Lamp 12V, 2W/1.5W LED
Brakes
Front Brake 130 mm Drum Brake
Rear Brake 130 mm Drum Brake
Chassis and Suspension
Frame High Rigidity Underbone Type
Front Suspension Advance Telescopic Suspension
Rear Suspension Gas Charged Mono Shock
Tyres
Wheel Type Alloy Wheels
Front Tyre 90/90-12,Tubeless
Rear Tyre 90/90-12,Tubeless
Dimensions
Length x Width x Height 1834 x 650 x 1115 mm
Wheelbase 1275 mm
Ground Clearance 150 mm
Petrol Tank Capacity 5.50 litres
