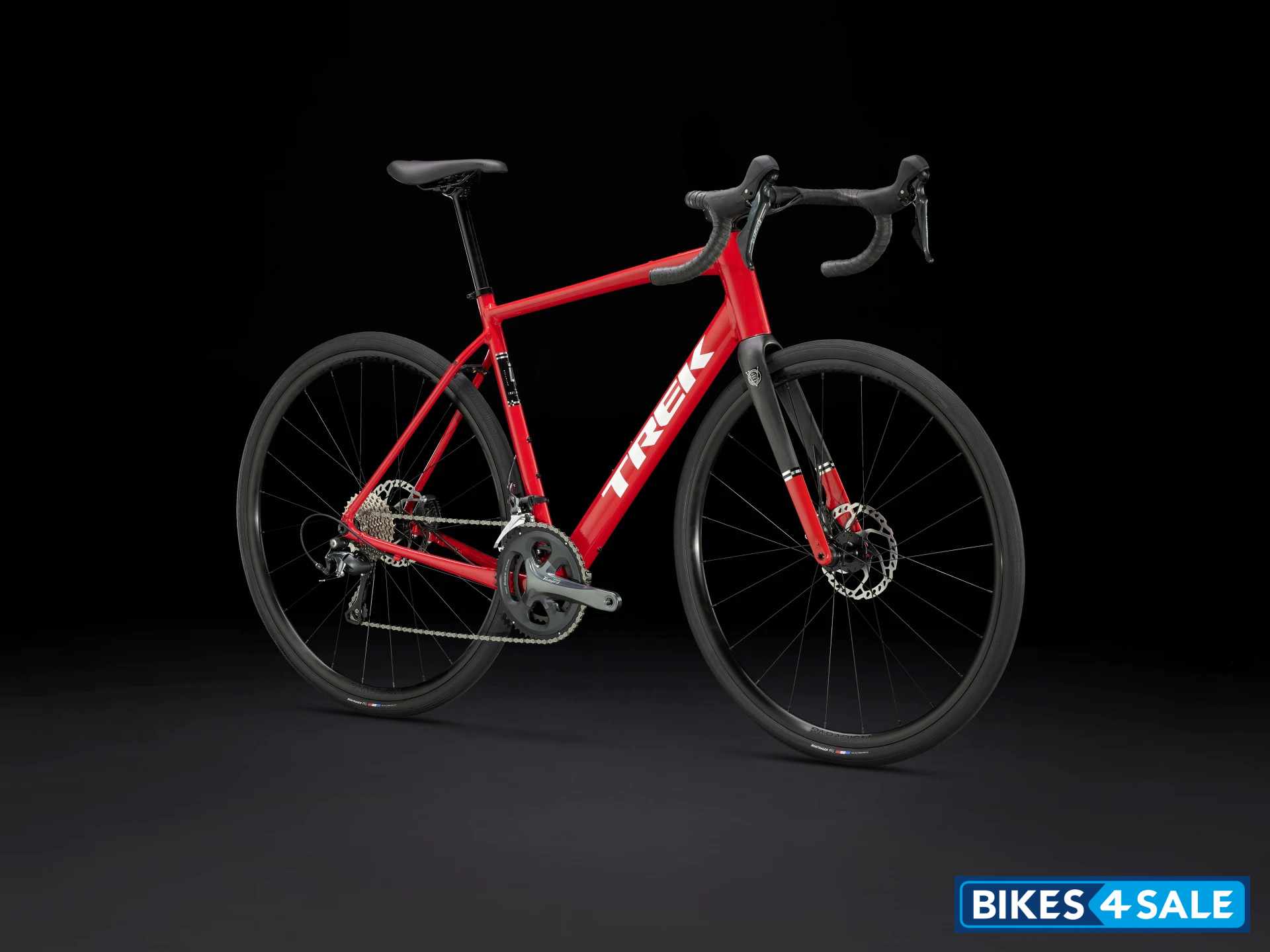

Trek Domane AL 4 Gen 4 Bicycle

Price, Colours and Features of Domane AL 4 Gen 4

Rate Trek Domane AL 4 Gen 4:
4.0/5 (2 votes)
Trek Domane AL 4 Gen 4 Price

Rs. 1,49,899

Similar Bicycles
Colours

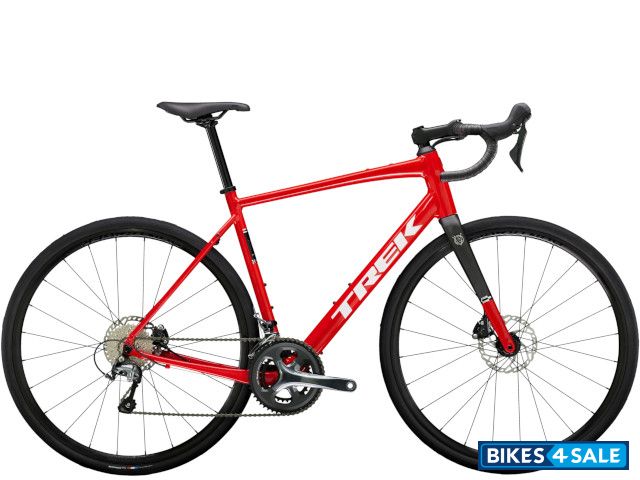

Viper Red

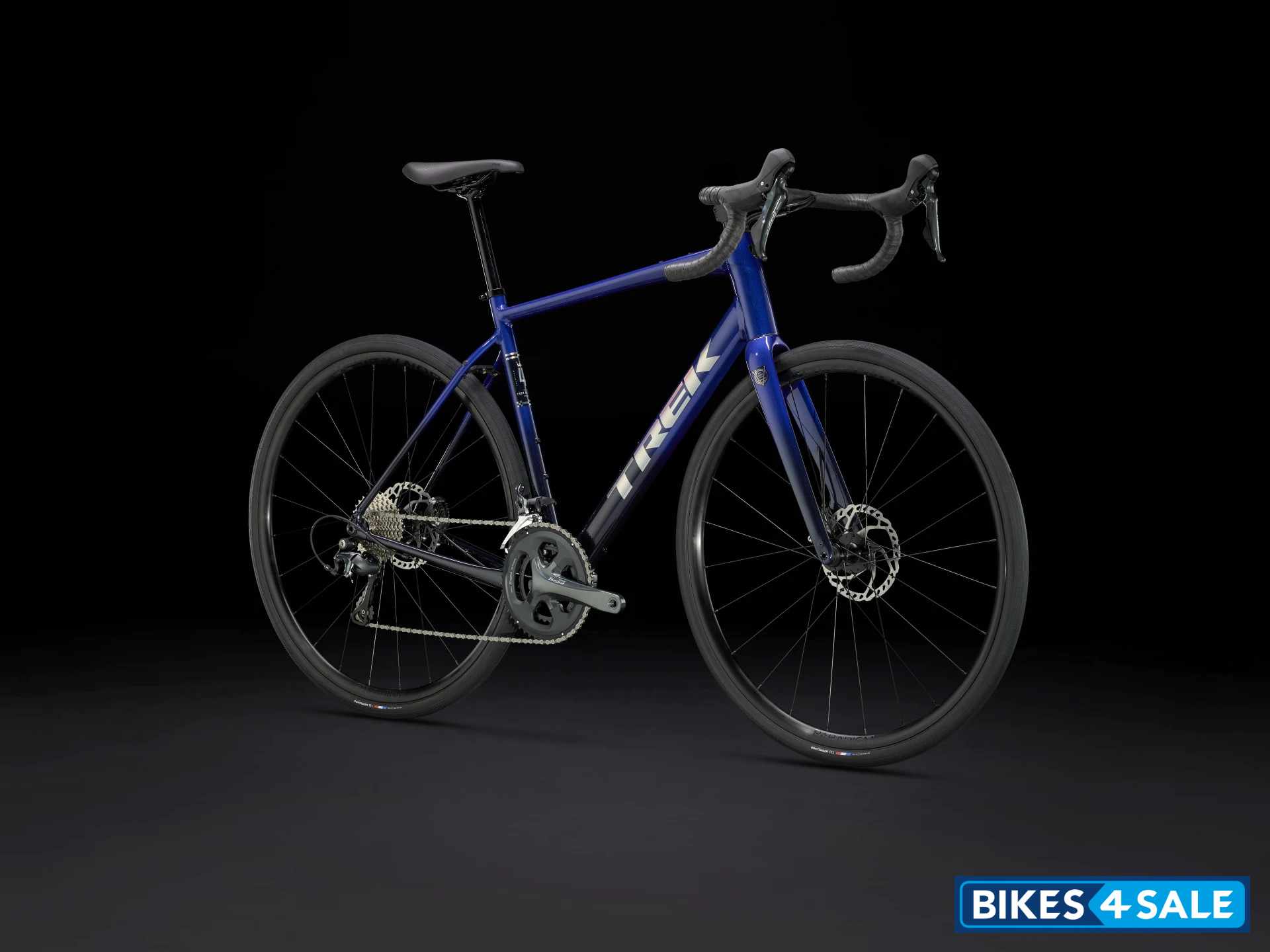

Hex Blue to Marianas Blue Fade

Technical Specifications
Vehicle TypeBicycle
StemSize: 49
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
Size: 52, 54
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length
Size: 56, 58
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length

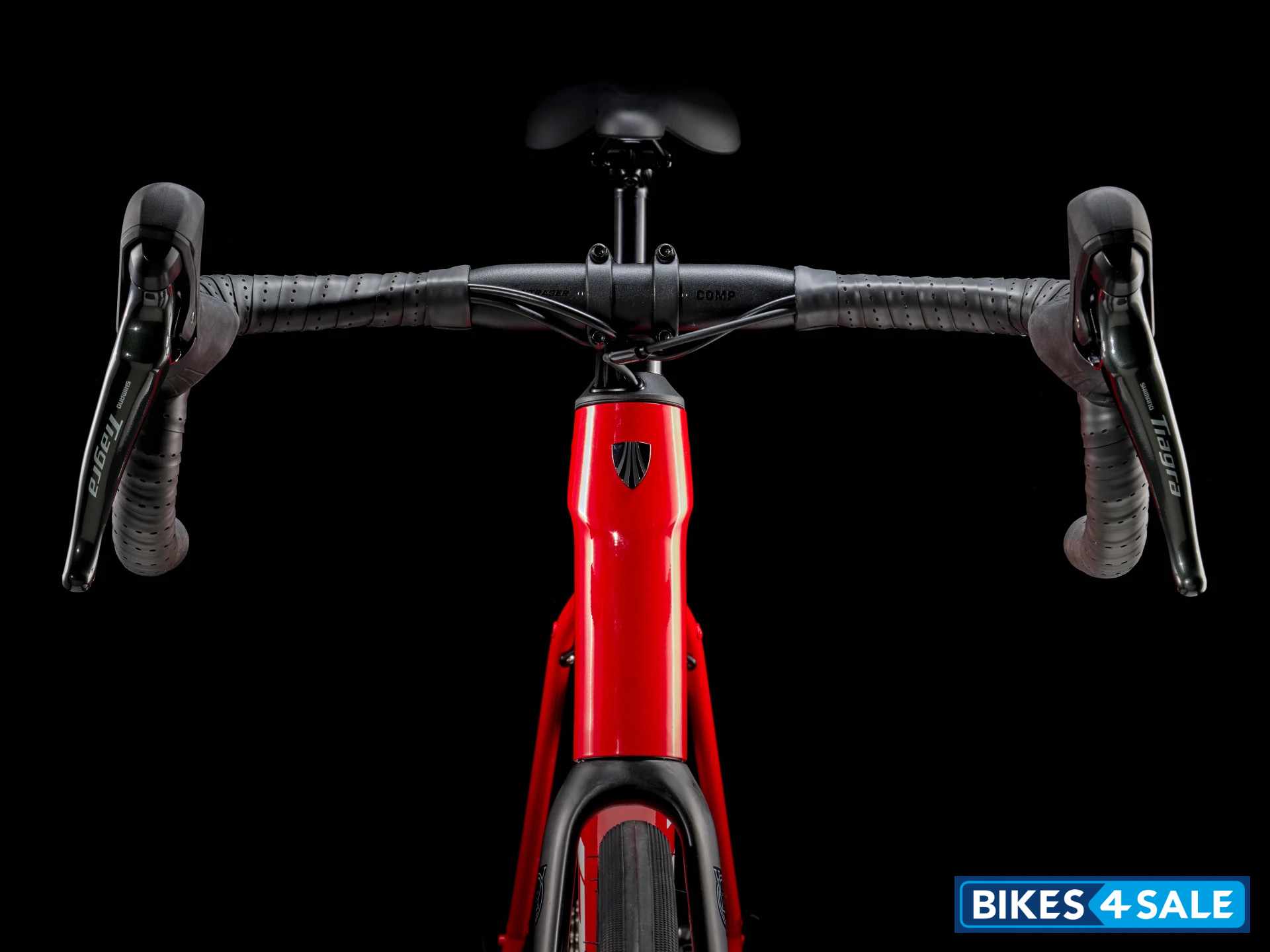

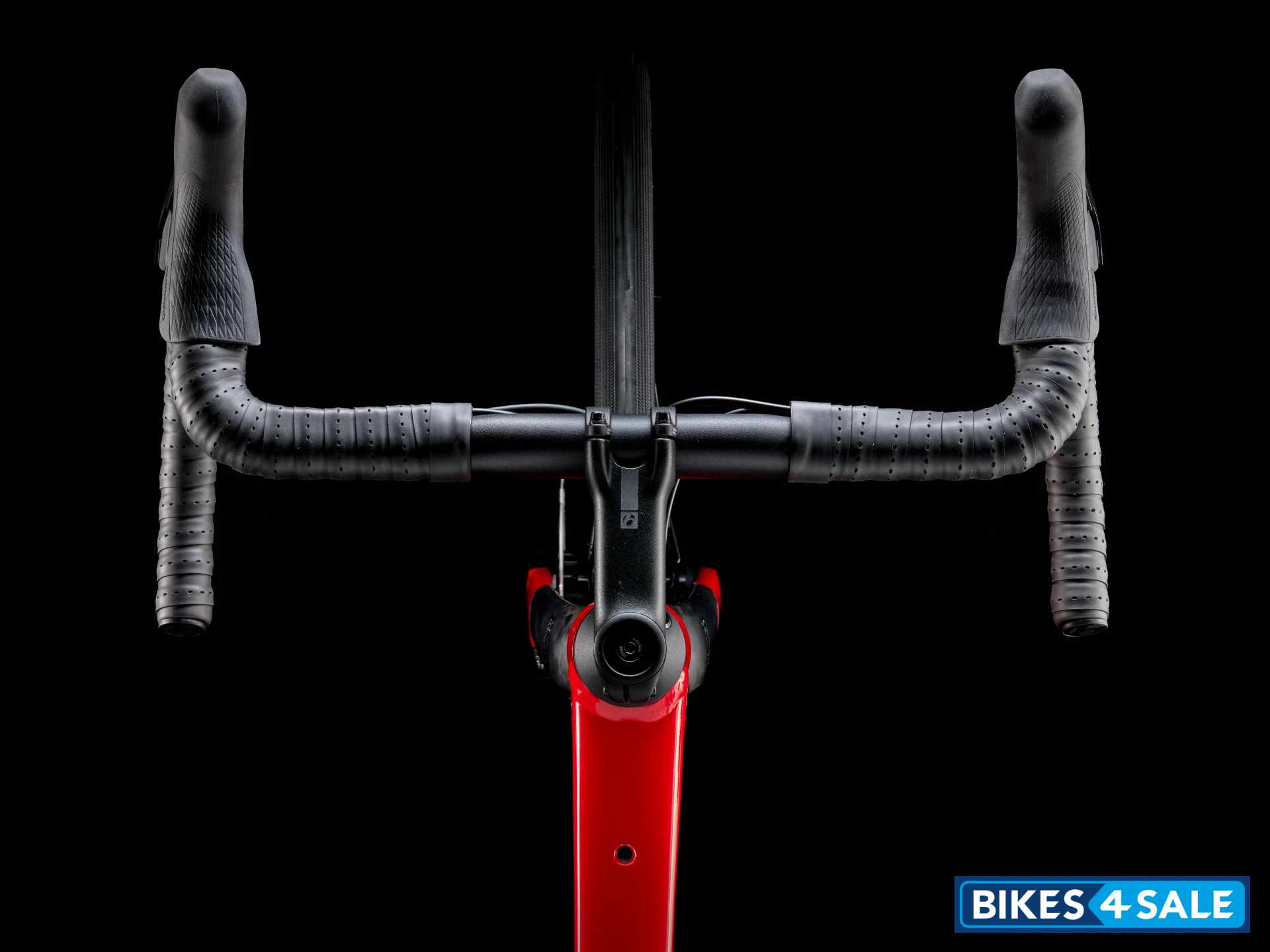

HandlebarSize: 49
Bontrager Comp VR-S, Alloy, 31.8mm, 81mm Reach, 118mm Drop, 38 cm Width
Size: 52
Bontrager Comp VR-S, alloy, 31.8 mm, 81 mm reach, 118 mm drop, 40 cm width
Size: 54, 56
Bontrager Comp VR-C, Alloy, 31.8 mm, 100 mm Reach, 124 mm Drop, 42 cm Width
Size: 58
Bontrager Comp VR-C, Alloy, 31.8 mm, 100 mm Reach, 124 mm Drop, 44 cm Width

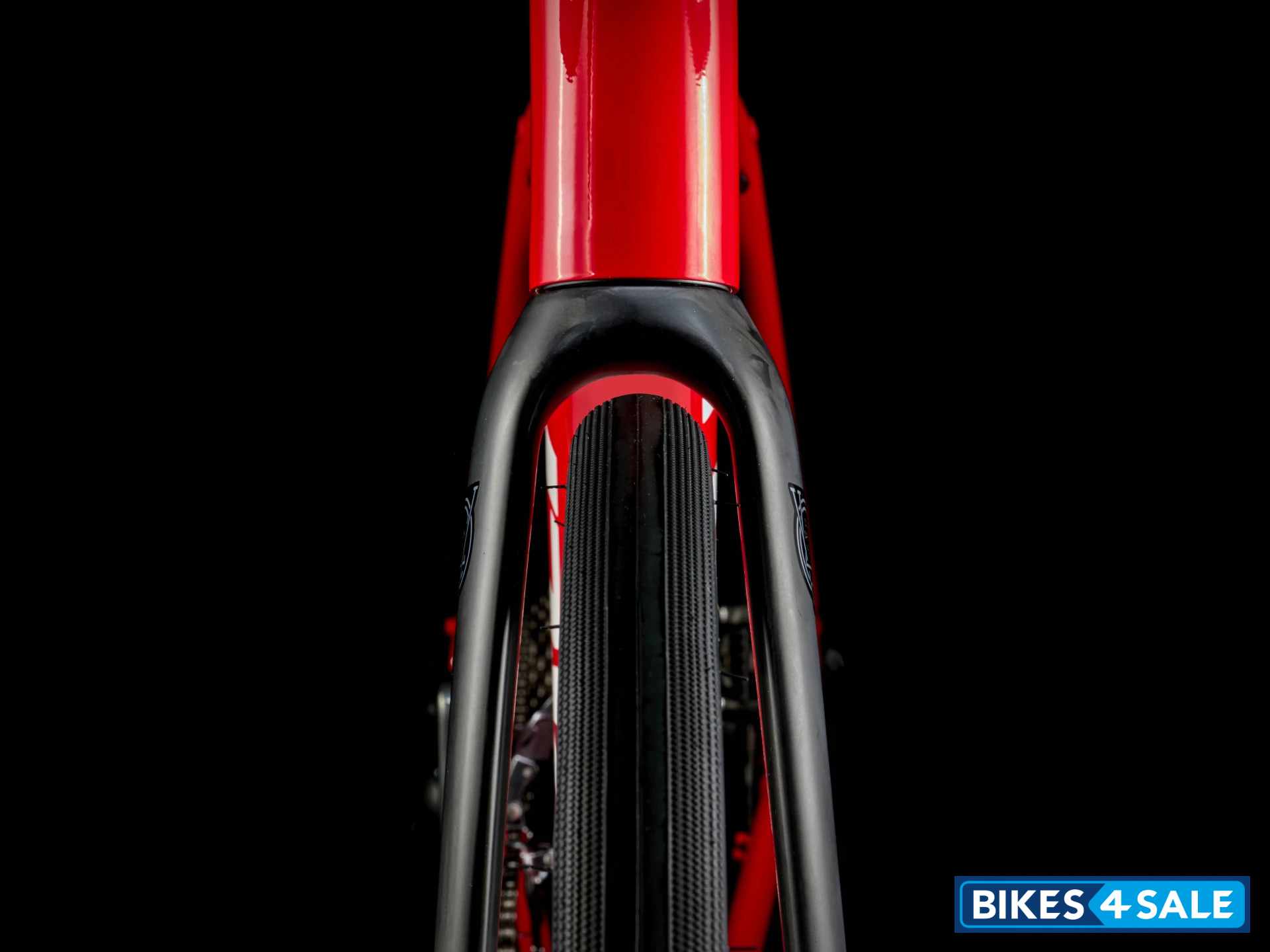

ForkDomane AL Carbon, Tapered Carbon Steerer, Internal Brake Routing, Fender Mounts, Flat Mount Disc, 12x100mm Thru Axle
SeatpostSize: 49
Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 250 mm length
Size: 52, 54, 56, 58
Bontrager Comp, 6061 Alloy, 27.2mm, 8mm offset, 330mm Length
CranksetSize: 49, 52
Shimano Tiagra 4700, 50/34, 170mm Length
Size: 54, 56
Shimano Tiagra 4700, 50/34, 172.5 mm length
Size: 58
Shimano Tiagra 4700, 50/34, 175 mm length
ChainShimano Tiagra HG54, 10-speed
ShiftersShimano Tiagra R4720, 10-speed
SaddleVerse Short, Steel Rails, 145mm Width
Derailleur : FrontShimano Tiagra 4700, 31.8mm Clamp
Derailleur : RearShimano Tiagra 4700, Long Cage, 34T Max Cog
Hub : FrontFormula RX-512 Alloy, 6-Bolt, 100x12mm Thru Axle
Hub : RearFormula RX-142 Alloy, 6-Bolt, Shimano 11-speed Freehub, 142x12mm Thru Axle
Spoke14g Stainless Steel, Black
CassetteShimano 10-speed, 11-32T
ChainringsMax. chainring size - 1x: 50T, 2x: 50/34
Bottom BracketShimano RS501 BSA
Brakes

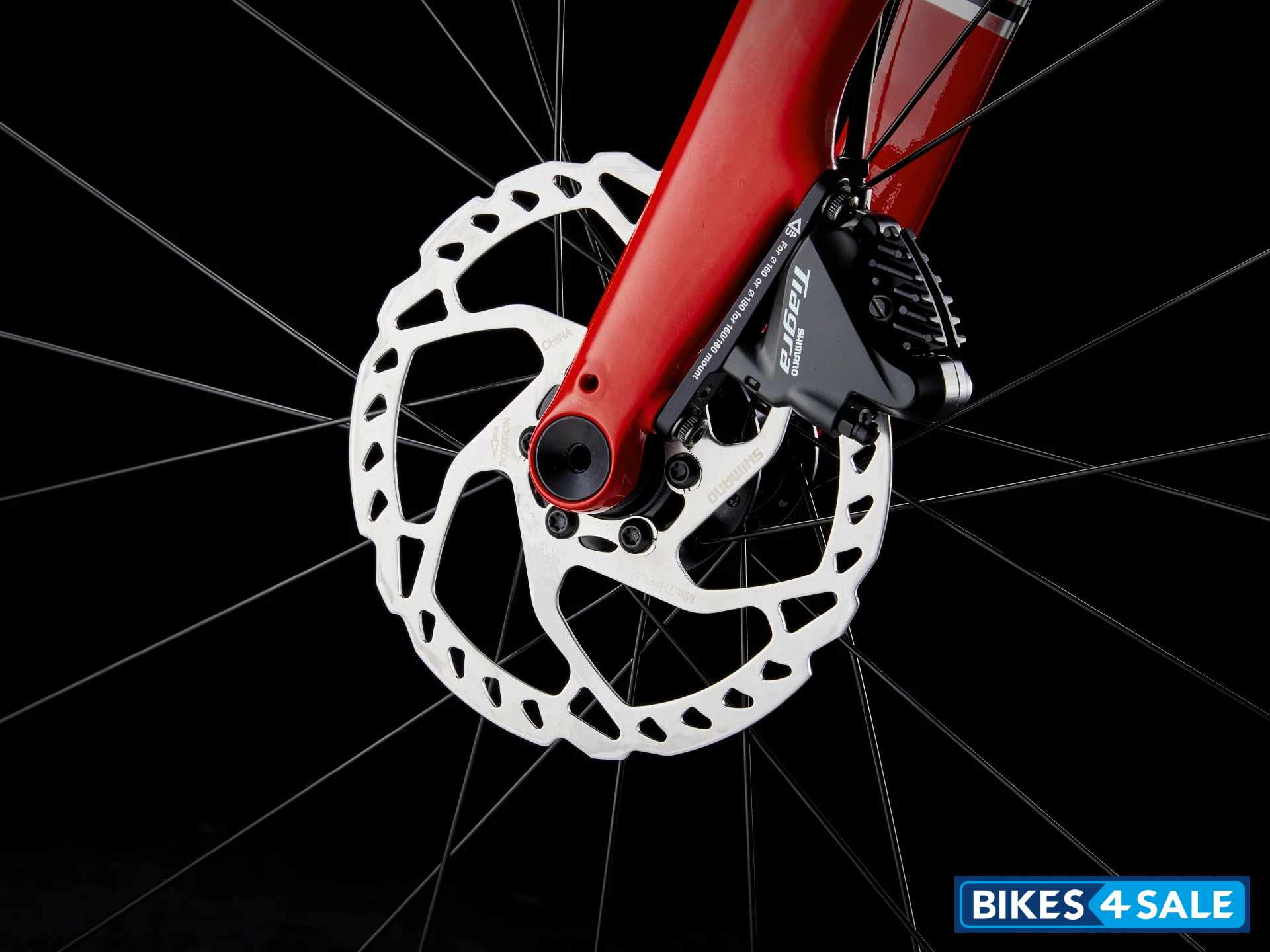

Front BrakeShimano Tiagra Hydraulic Disc
Rear BrakeShimano Tiagra Hydraulic Disc
Chassis and Suspension

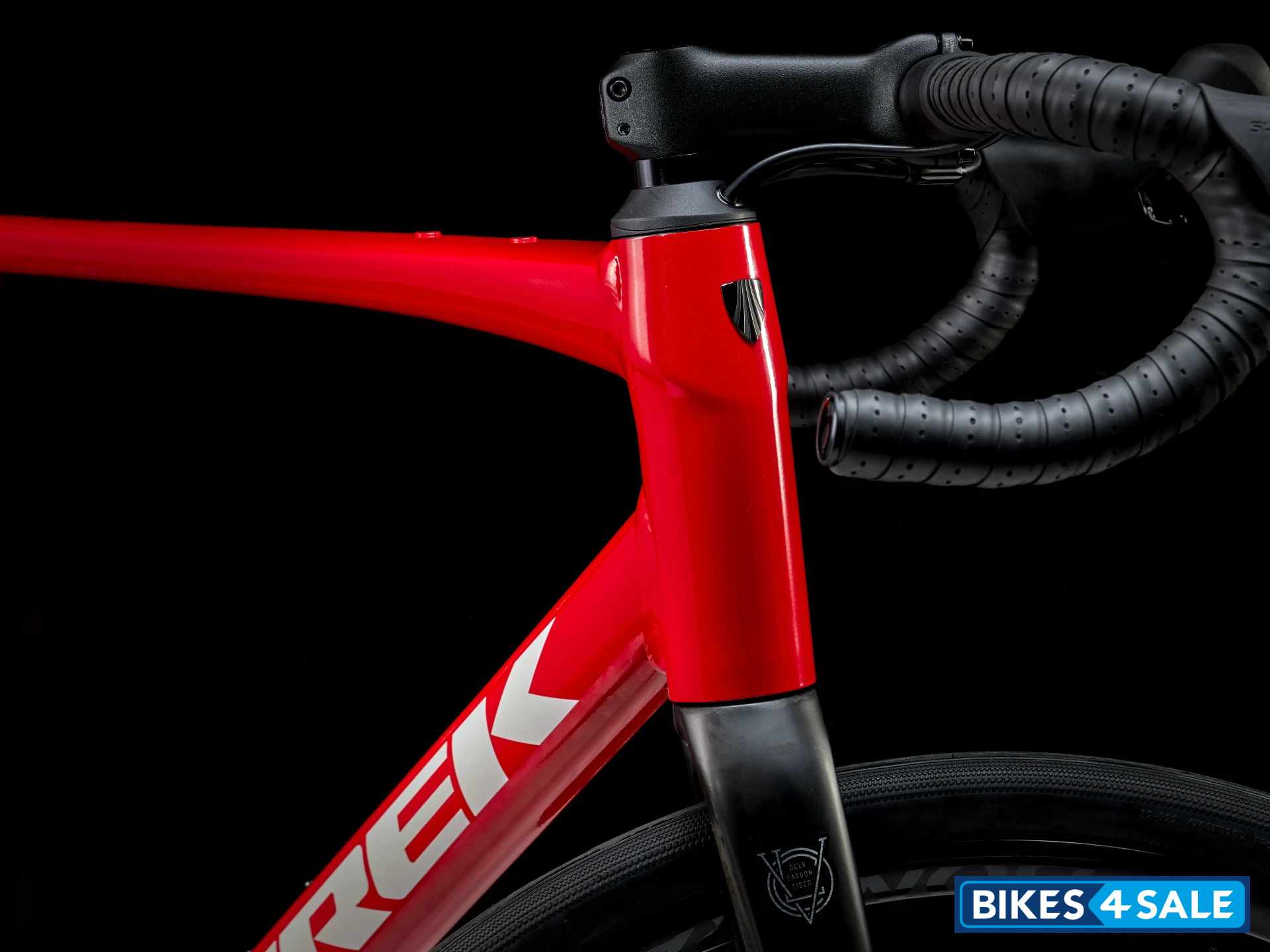

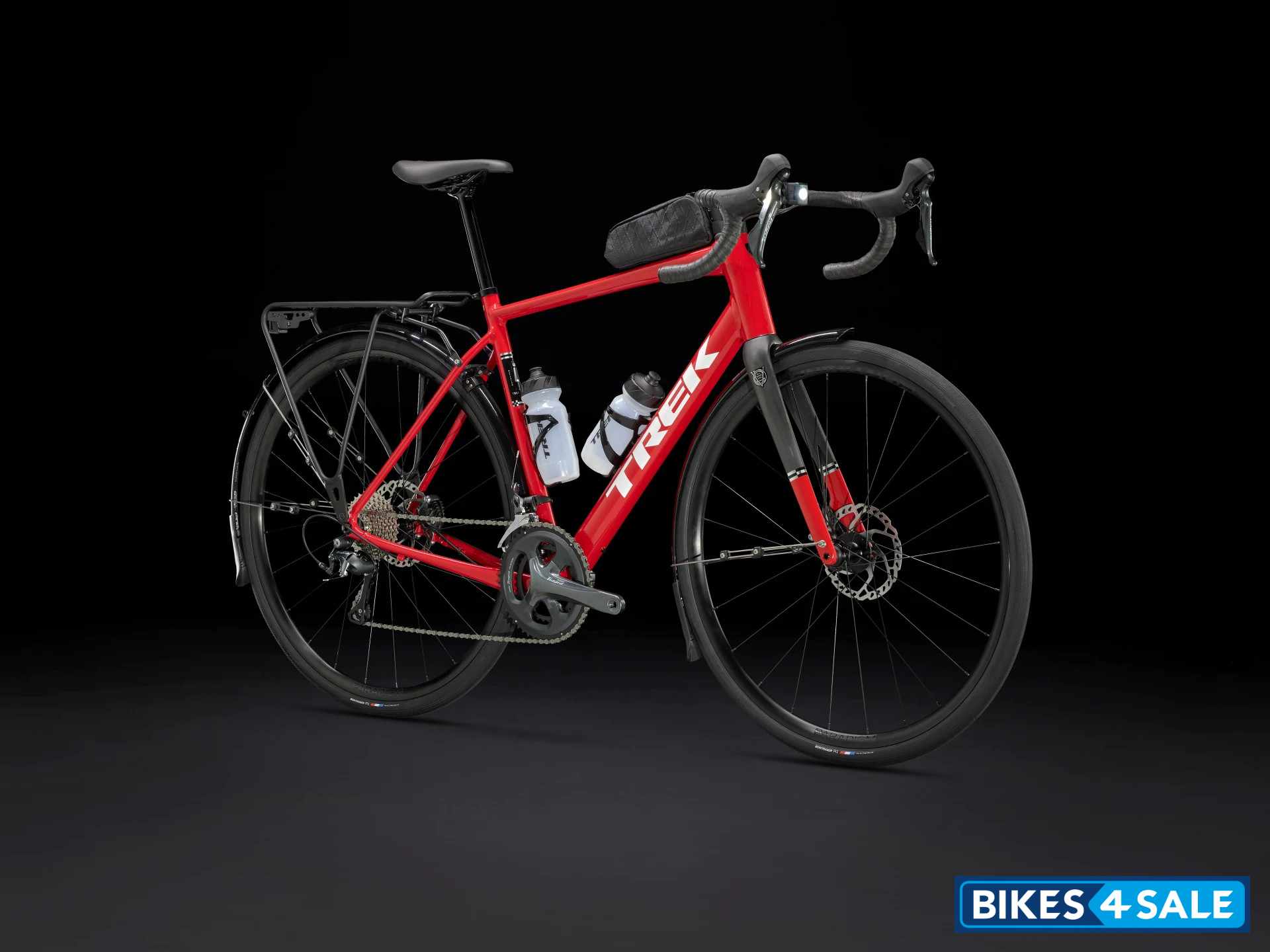

Frame100 Series Alpha Aluminium, tapered head tube, internal routing, mudguard mounts, flat-mount disc, UDH, 142x12mm thru axle
Tyres
Wheels / RimRim - Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21 mm width, Presta valve
Front TyreBontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32 mm
Rear TyreBontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32 mm
Additional Details
Skewer front - Bontrager Switch chamfered thru axle, removable lever
Skewer rear - Bontrager Switch chamfered thru axle, removable lever
Brake rotor - Shimano RT66, 6-bolt, 160 mm
