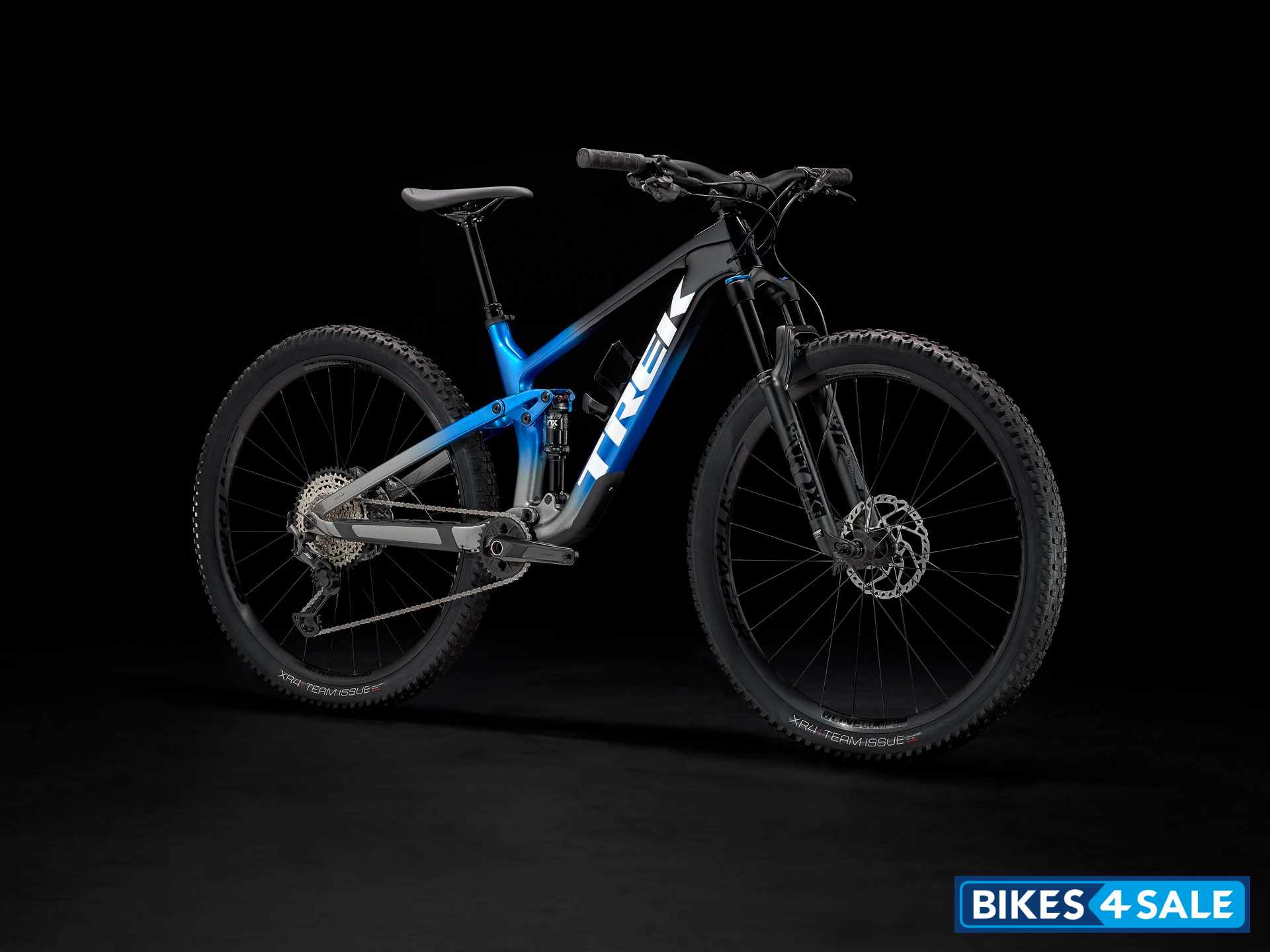

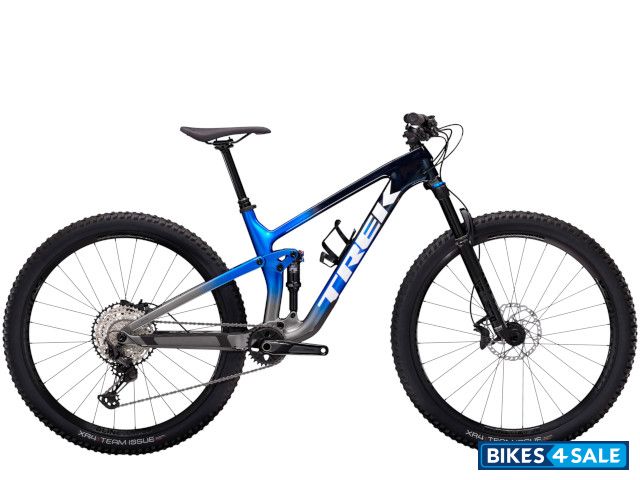

Trek Top Fuel 9.7 Bicycle price, colours, pictures, specs and reviews

The Trek Top Fuel 9.7 bicycle with its Shimano SLX M7100 12-speed chain and Shimano XT M8100 12-speed shifters delivers a smooth and precise gear shifting experience. Its well-calibrated components ensure effortless transitions between speeds, enhancing the rider's control and efficiency on various terrains. With these specifications, the Top Fuel 9.7 excels in delivering a responsive and dependable performance, making it a solid choice for cyclists seeking reliability and performance in their rides.

Rate Trek Top Fuel 9.7:

3.3/5 (3 votes)

Write a Review

Trek Top Fuel 9.7 Price

Rs. 3,84,699

Picture Gallery

Technical Specifications

Vehicle Type	Bicycle

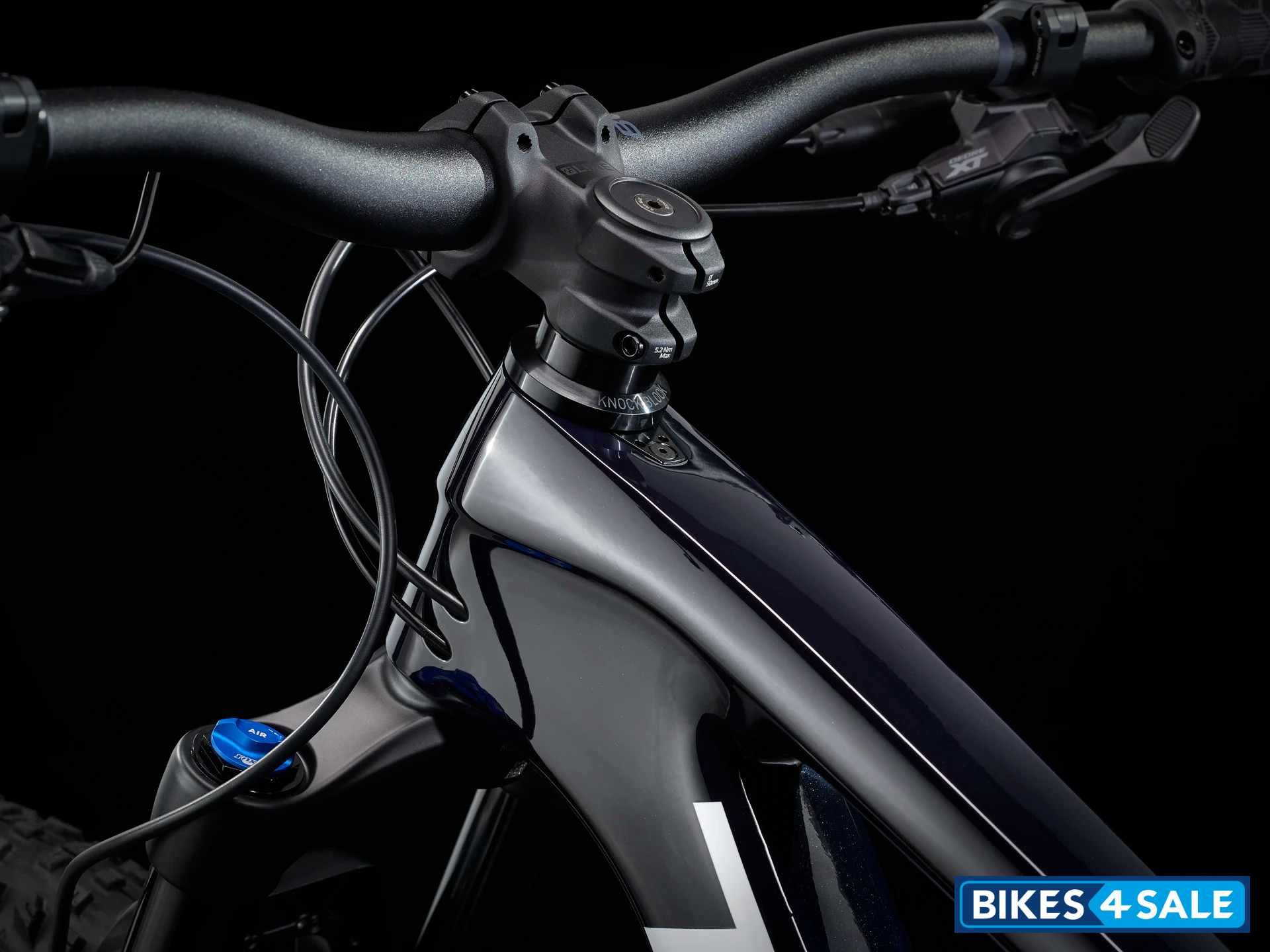

Stem	Bontrager Elite, 35 mm, 0-degree, 45 mm length
Handlebar	Size: XS, S Bontrager Line, alloy, 35 mm, 27.5 mm rise, 750 mm width Size: M, M/L, L, XL Bontrager Line, alloy, 35 mm, 27.5 mm rise, 780 mm width
Fork	Fox Rhythm 34, Float EVOL air spring, GRIP damper, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt axle, 120 mm travel
Seatpost	Size: XS, S TranzX JD-YSP39, 100 mm travel, internal routing, 34.9 mm Size: M, M/L TranzX JD-YSP39, 150 mm travel, internal routing, 34.9 mm Size: L, XL TranzX JD-YSP39, 170 mm travel, internal routing, 34.9 mm
Grip	Bontrager XR Trail Comp, nylon lock-on

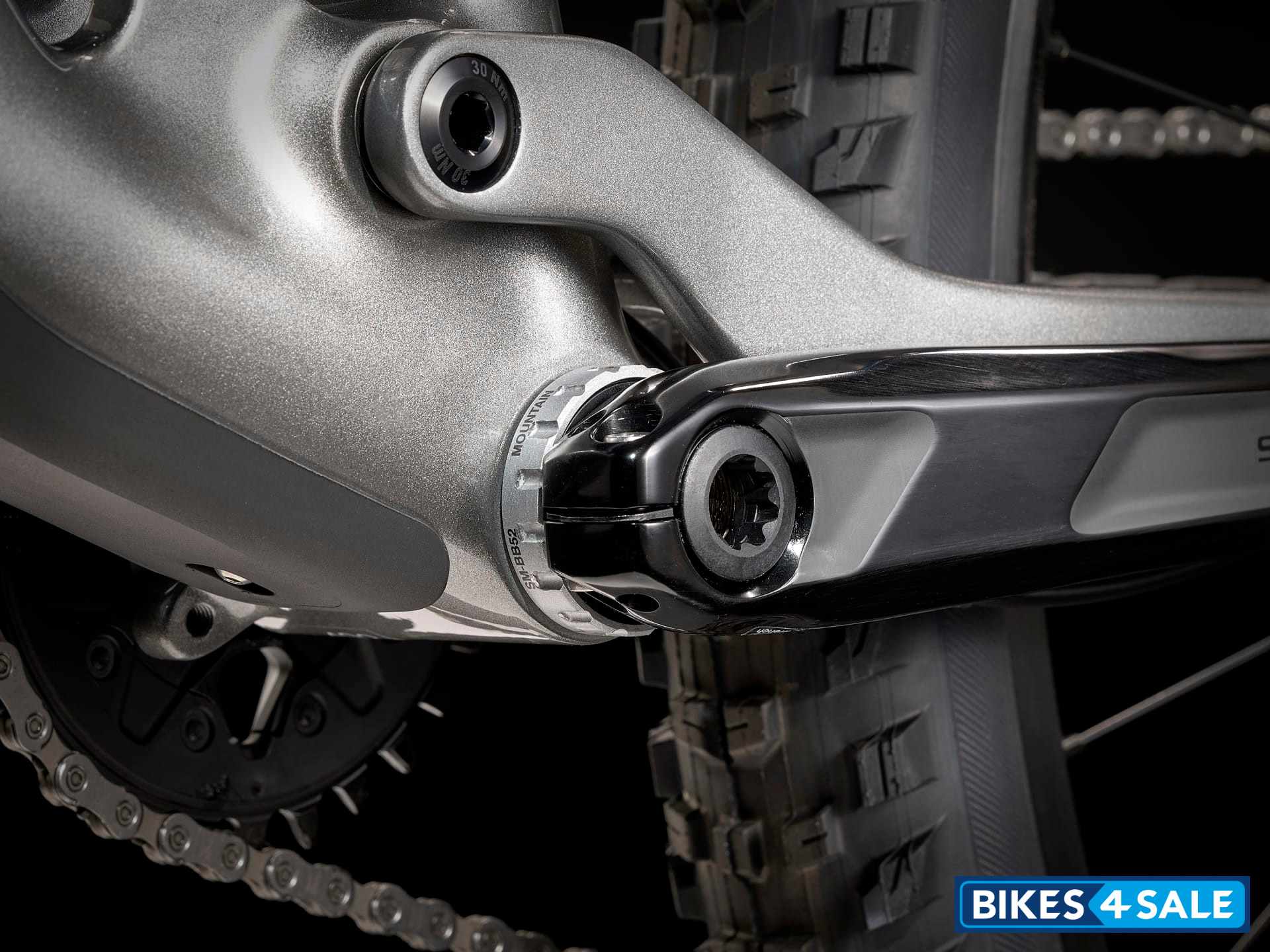

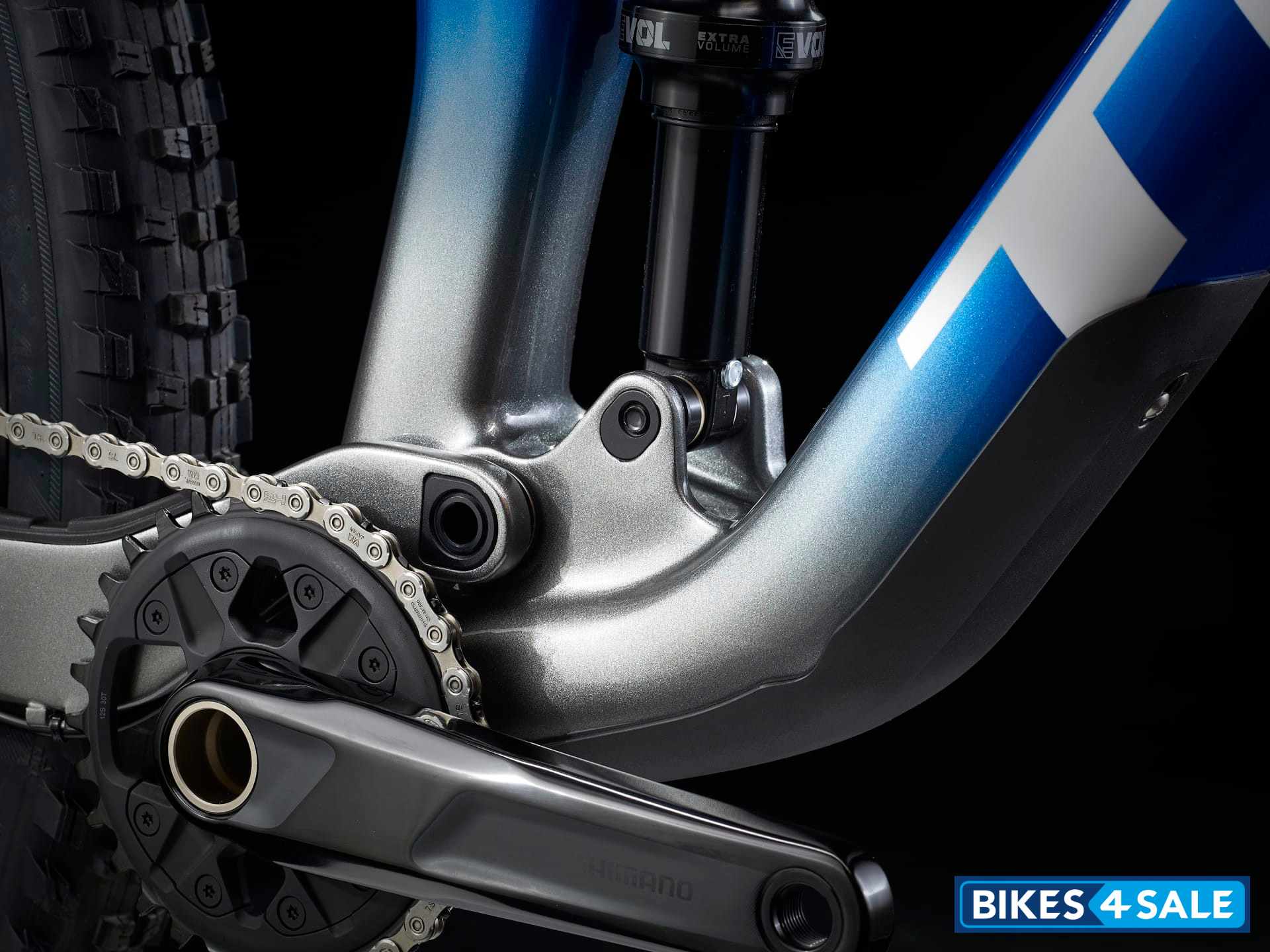

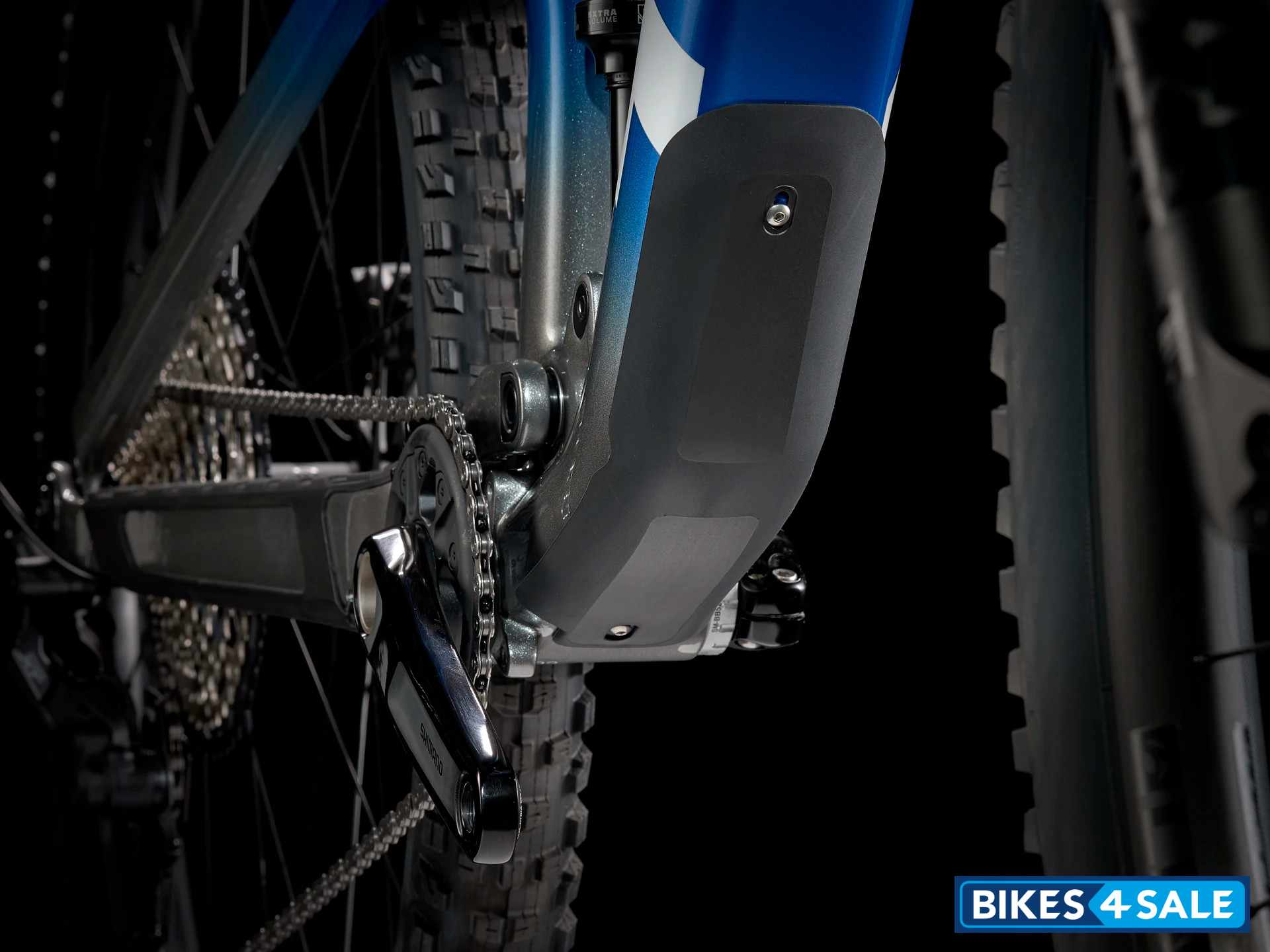

Crankset	Size: XS, S, M, M/L, L Shimano Deore M6120, 30T ring, 55 mm chainline, 170 mm length Size: XL Shimano Deore M6120, 30T ring, 55 mm chainline, 175 mm length
Chain	Shimano SLX M7100, 12-speed
Shifters	Shimano XT M8100, 12-speed
Saddle	Bontrager Arvada, steel rails, 138 mm width
Headset	Knock Block 2.0 Integrated, 72-degree radius (includes infinite-radius chip), sealed cartridge bearing, 1-1/8" top, 1.5" bottom

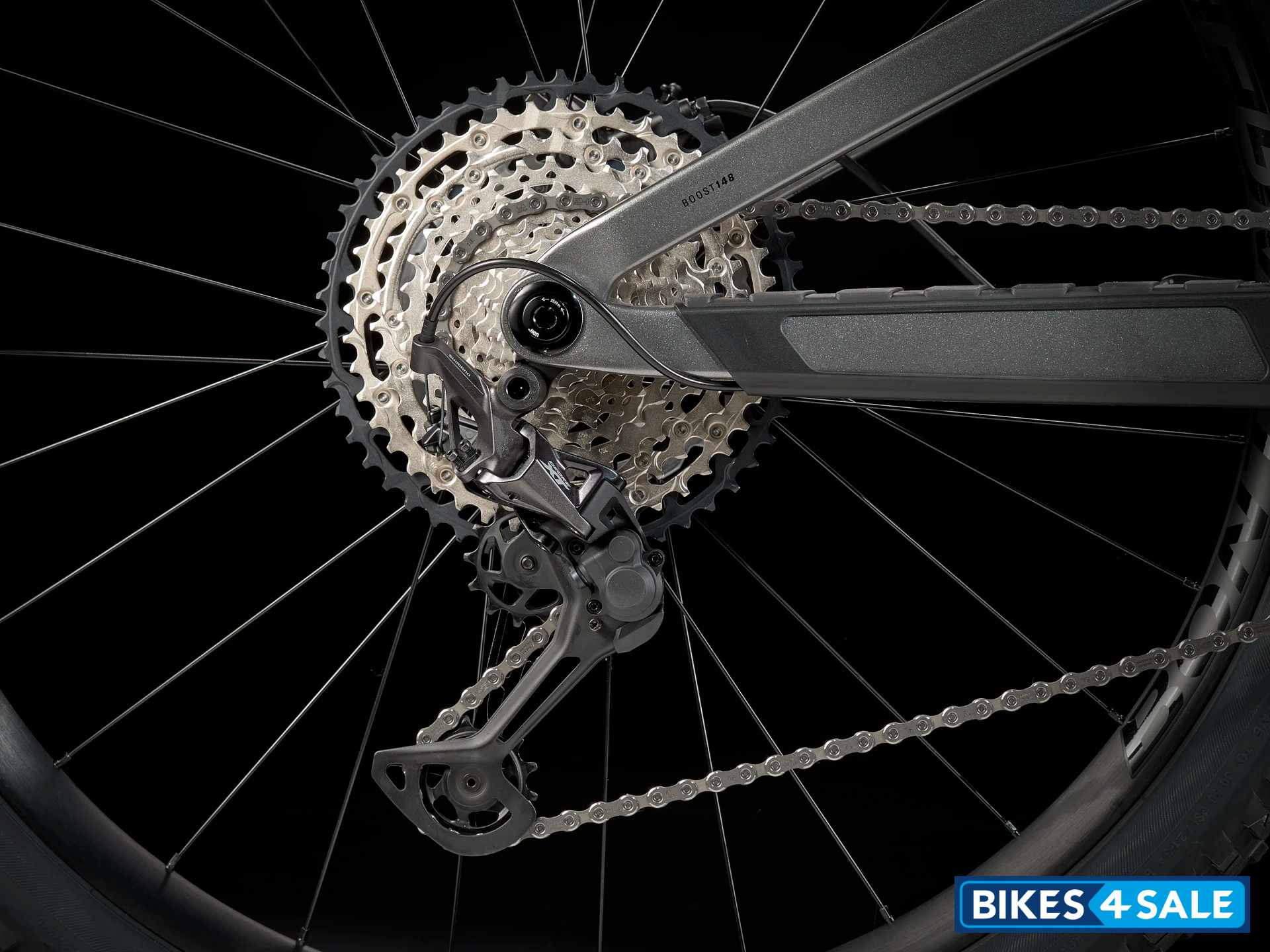

Derailleur : Rear	Shimano XT M8100, long cage
Cassette	Shimano SLX M7100, 10-51T, 12-speed
Chainrings	Max. chainring size - 1x: 36T round, 34T oval, min 28T
Bottom Bracket	Size: XS, S, M, M/L, L, XL Shimano SM-BB52, 73 mm, threaded external bearing Size: XS Shimano BB-

Brakes

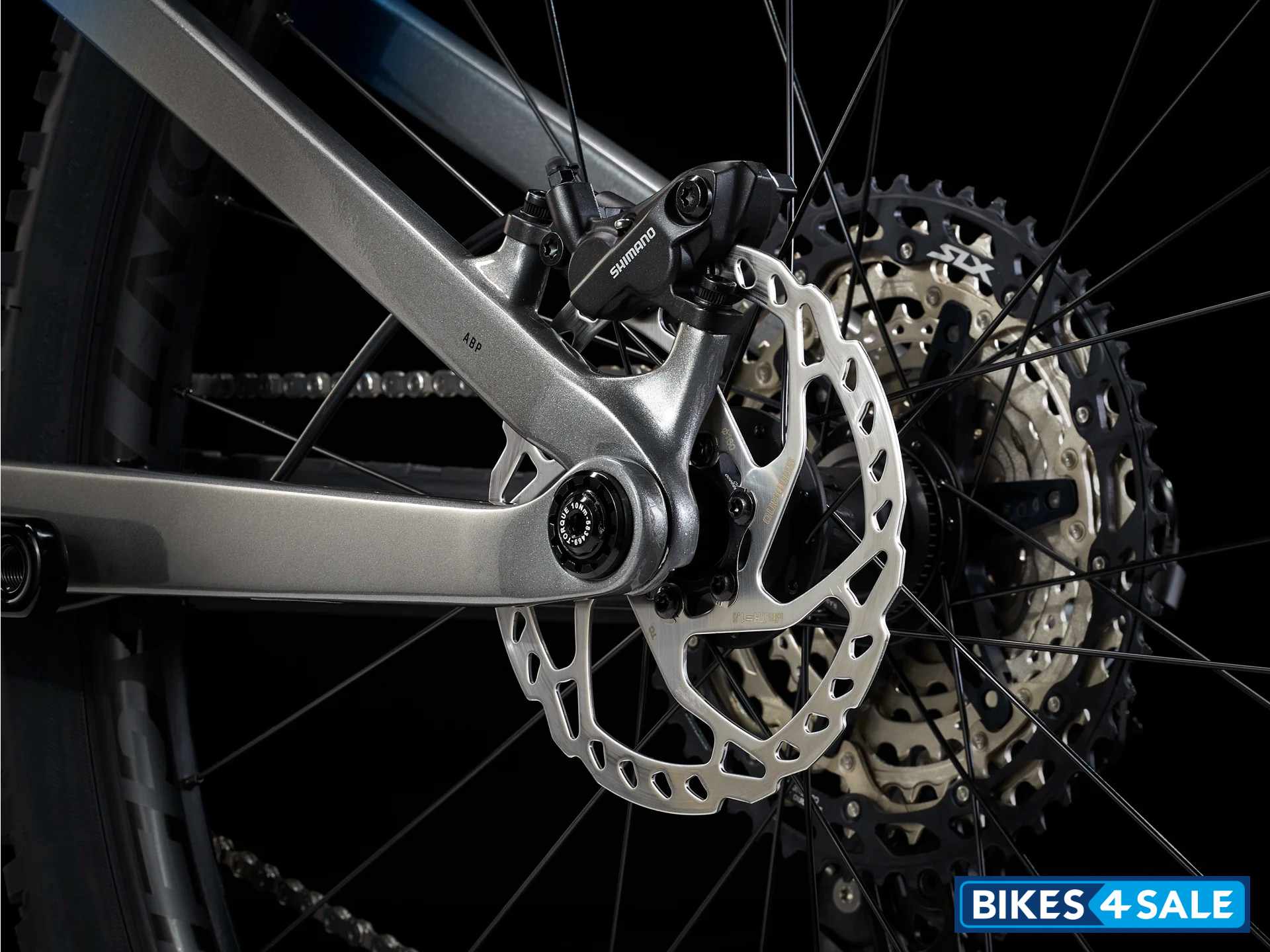

Front Brake	Shimano 4-piston hydraulic disc, M6120 calliper
Rear Brake	Shimano 4-piston hydraulic disc, M6120 calliper
Brake Lever	M6100 lever

Chassis and Suspension

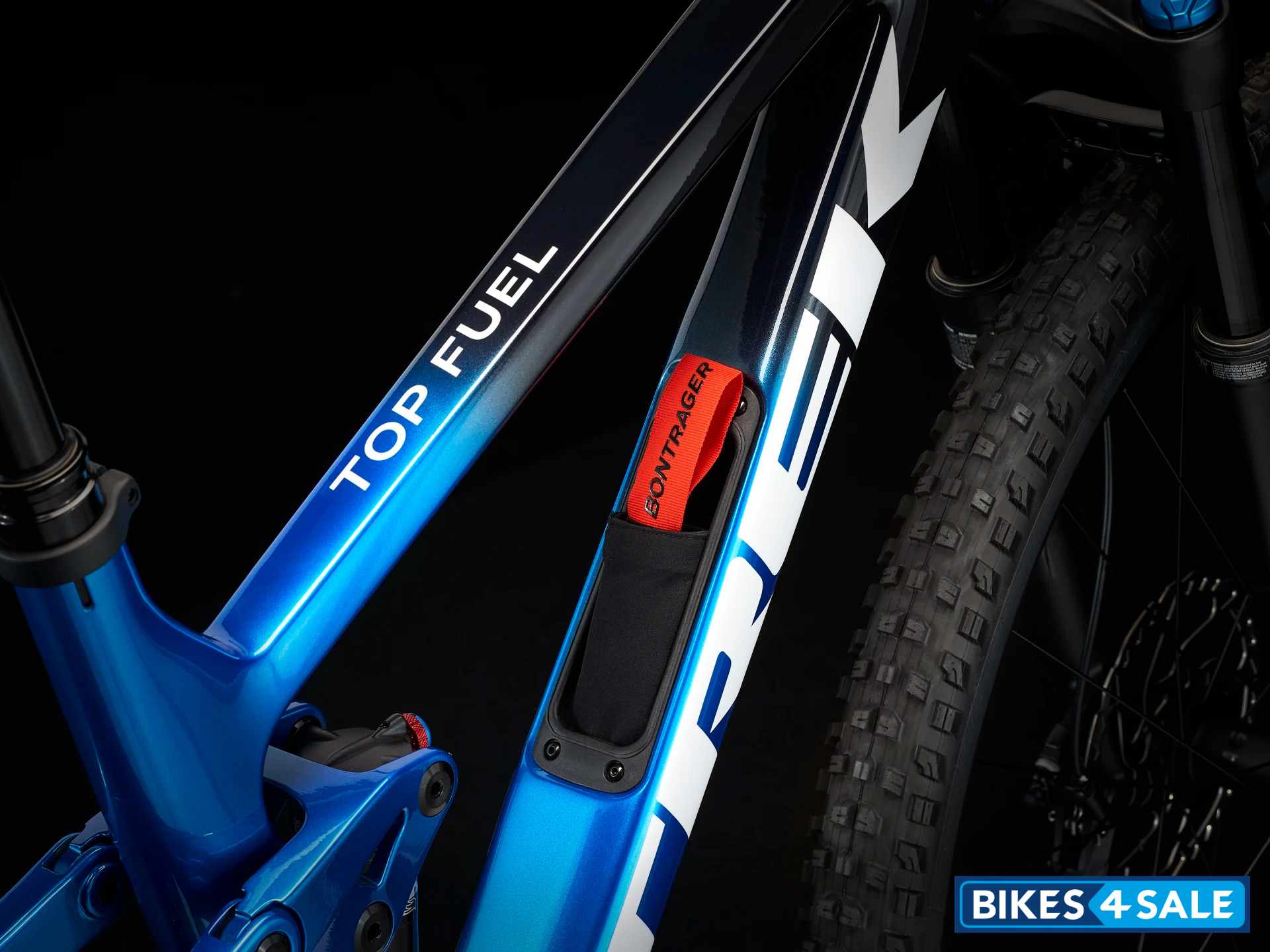

Frame	OCLV Mountain Carbon, internal storage, tapered head tube, Knock Block 2.0, internal guided routing, downtube guard, magnesium rocker link, Mino Link, ABP, Boost148, 120 mm travel

Tyres
Wheels / Rim	Wheel Front Size: XS Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 27.5" Size: S, M, M/L, L, XL Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 29" Wheel rear Size: XS Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 54, 6-bolt, Boost148, 12 mm thru axle, 27.5" Size: S, M, M/L, L, XL Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12 mm thru axle, 29"

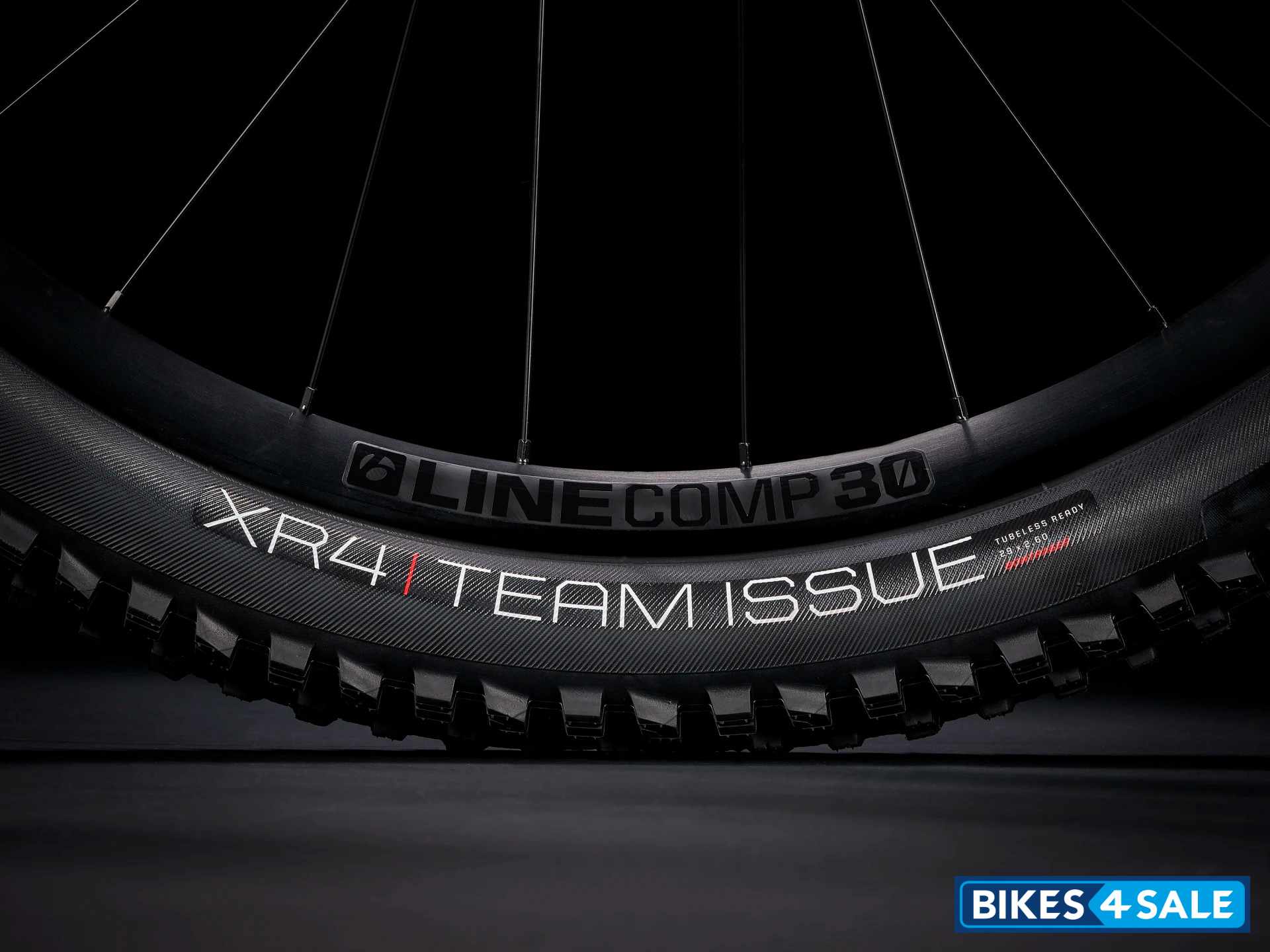

Front Tyre	Size: XS Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 27.5 x 2.40'' Size: S, M, M/L, L, XL Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 29 x 2.40''
Rear Tyre	Size: XS Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 27.5 x 2.40'' Size: S, M, M/L, L, XL Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 29 x 2.40''

Additional Details

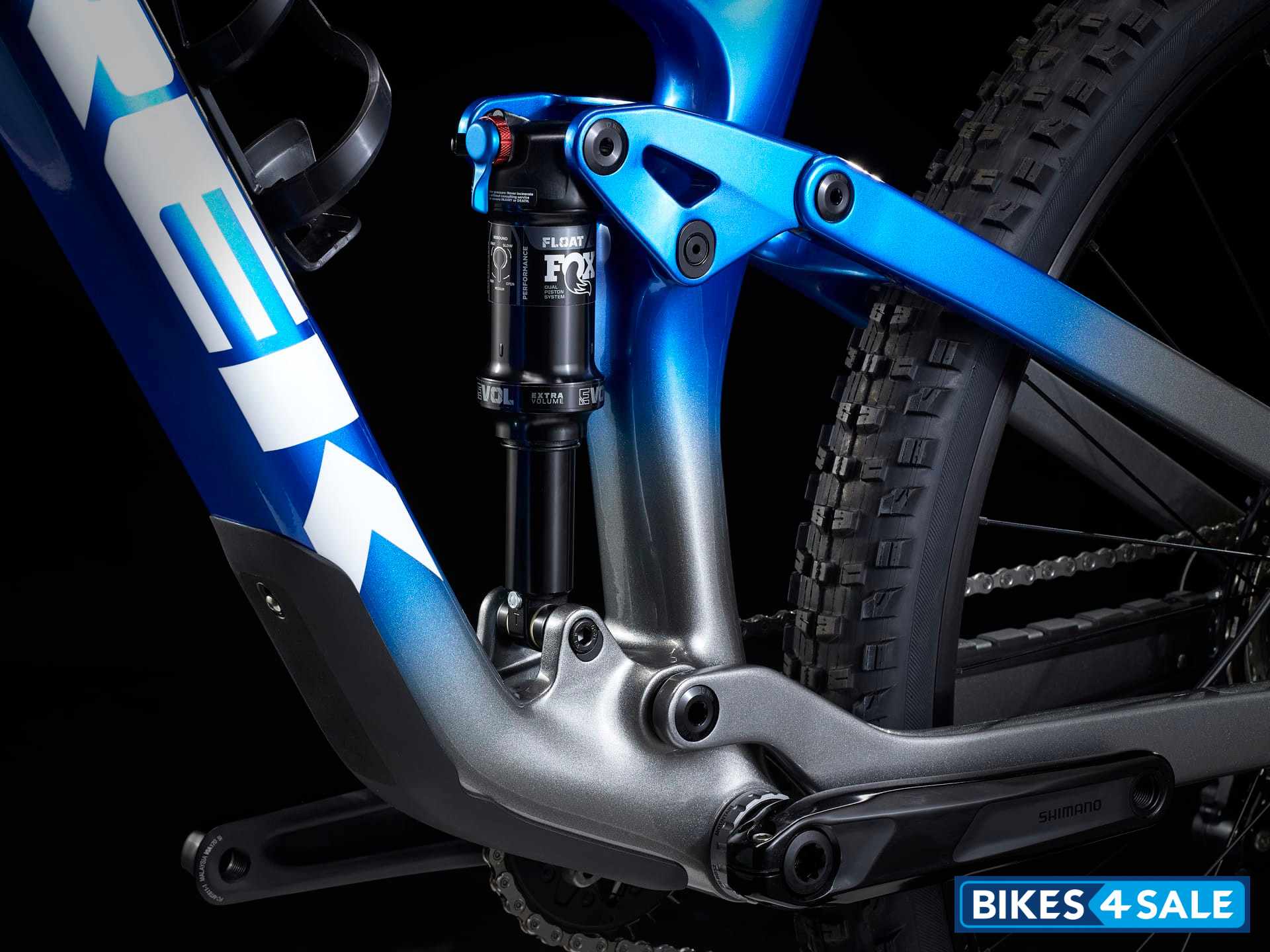

Shock - Fox Performance Float DPS, 3-position damper, 185mm x 50mm
